FX25-Bay Specifications

  • Top Reviewed Bay Boat

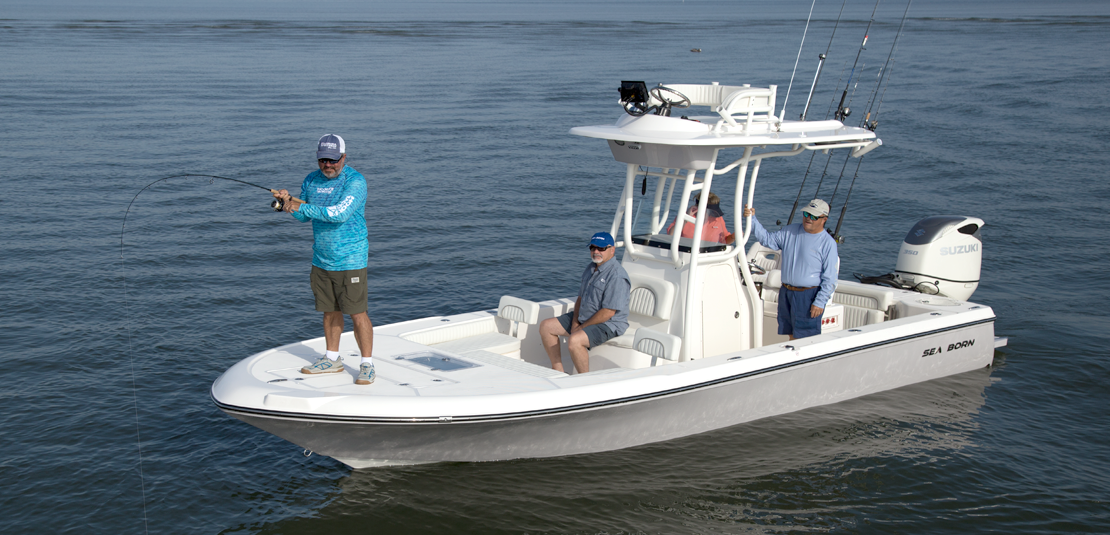

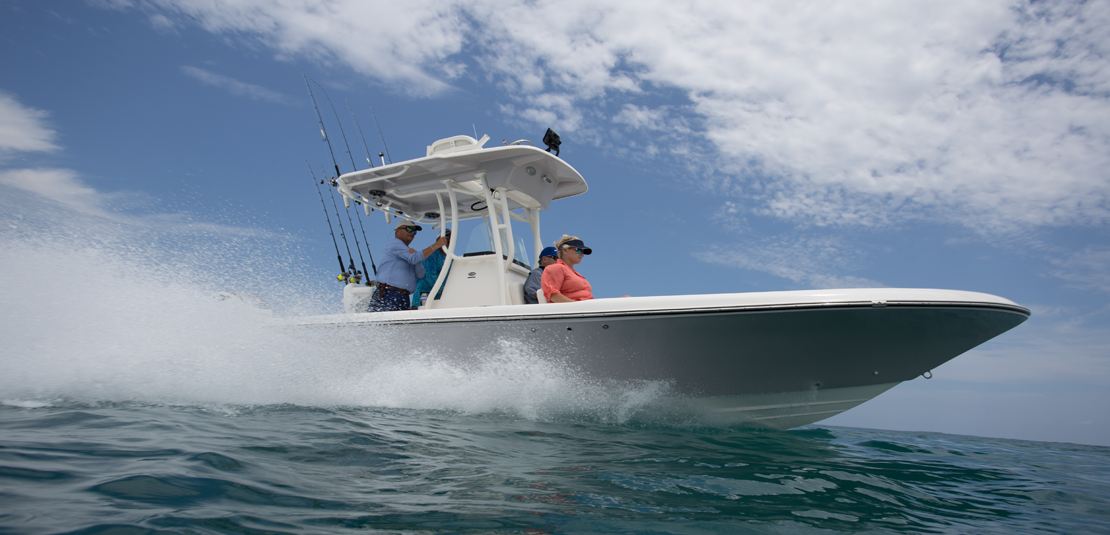

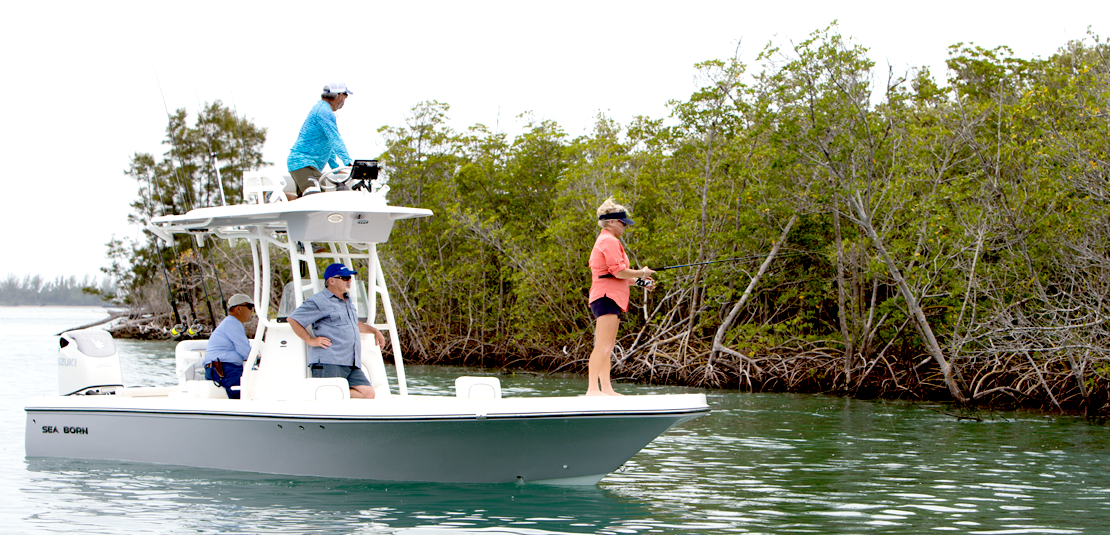

    Our largest tournament style bay boat is designed for those seeking serious fishing and play on the water. Built on a 105” beam for stability with a single step hull to improving performance and fuel efficiency, the FX25 offers one of the largest forward casting decks in the business. As for style, our 25-footer includes a fully enclosed transom and molded engine bustle giving you a roomy and practical layout perfect for fighting fish with ample space for up to ten passengers. Loaded with fishing features as well as plenty of cushioned seating, the FX25 is the flagship of our FX Series of bay boats.


    Standard Features

    • 10-Year-Limited Hull Warranty
    • No-Wood All Composite Construction
    • Advanced Fiberglass Stringer System
    • Performance Improving Stepped Hull

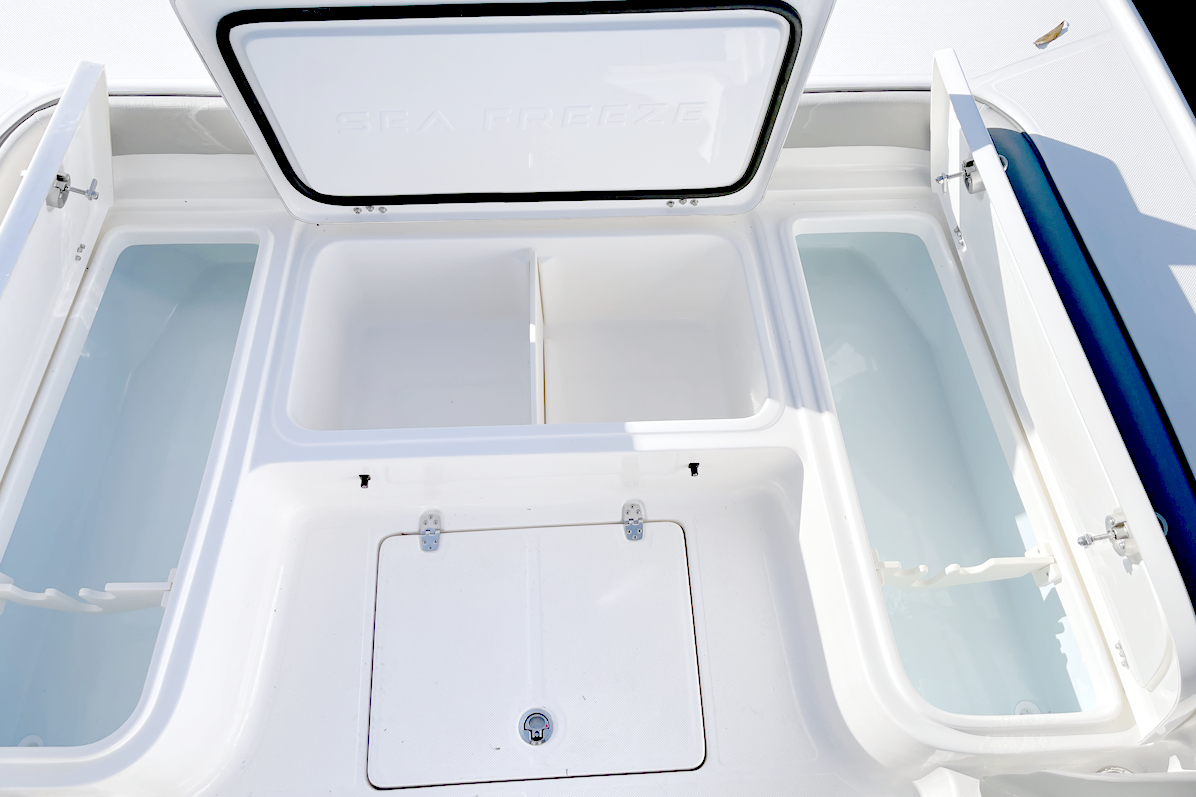

    • Bow Rod Lockers
    • Front Deck Molded Toe Rail
    • Trolling Motor Harness & Plug
    • Trolling Motor Mounting Plate

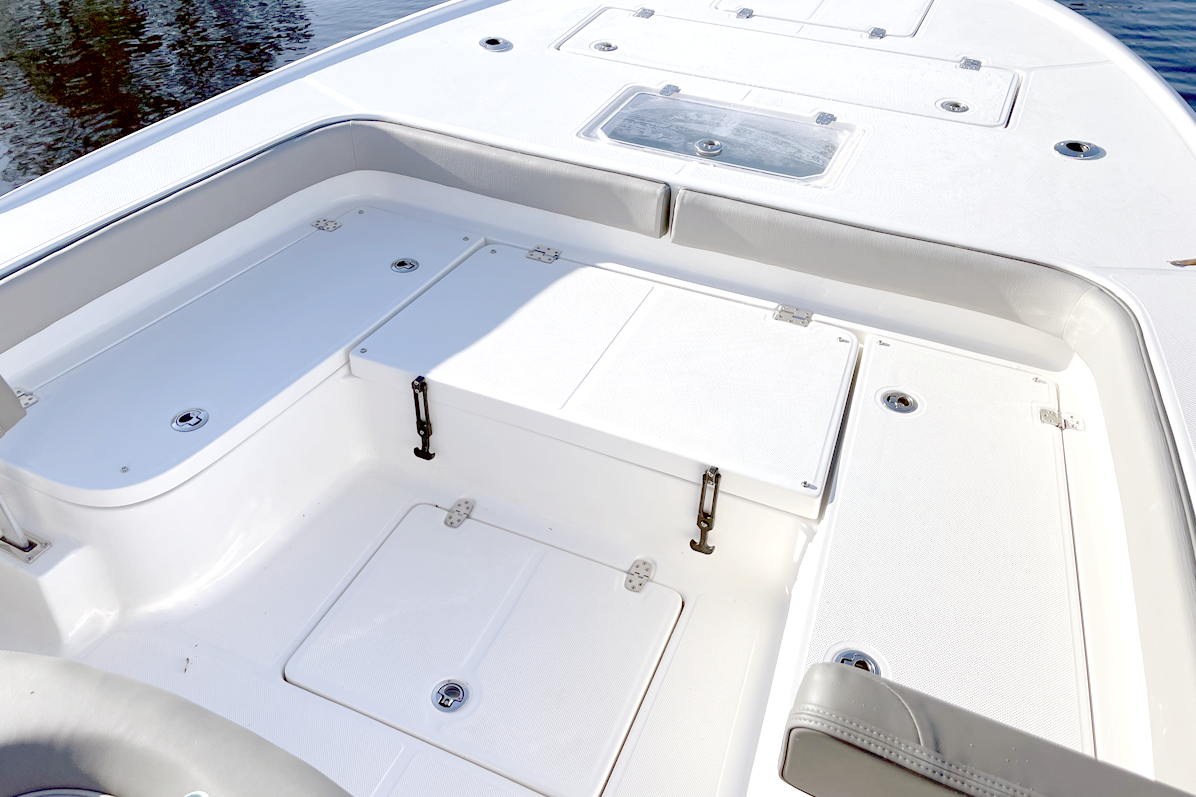

    • Forward Under-Seat Rod Lockers

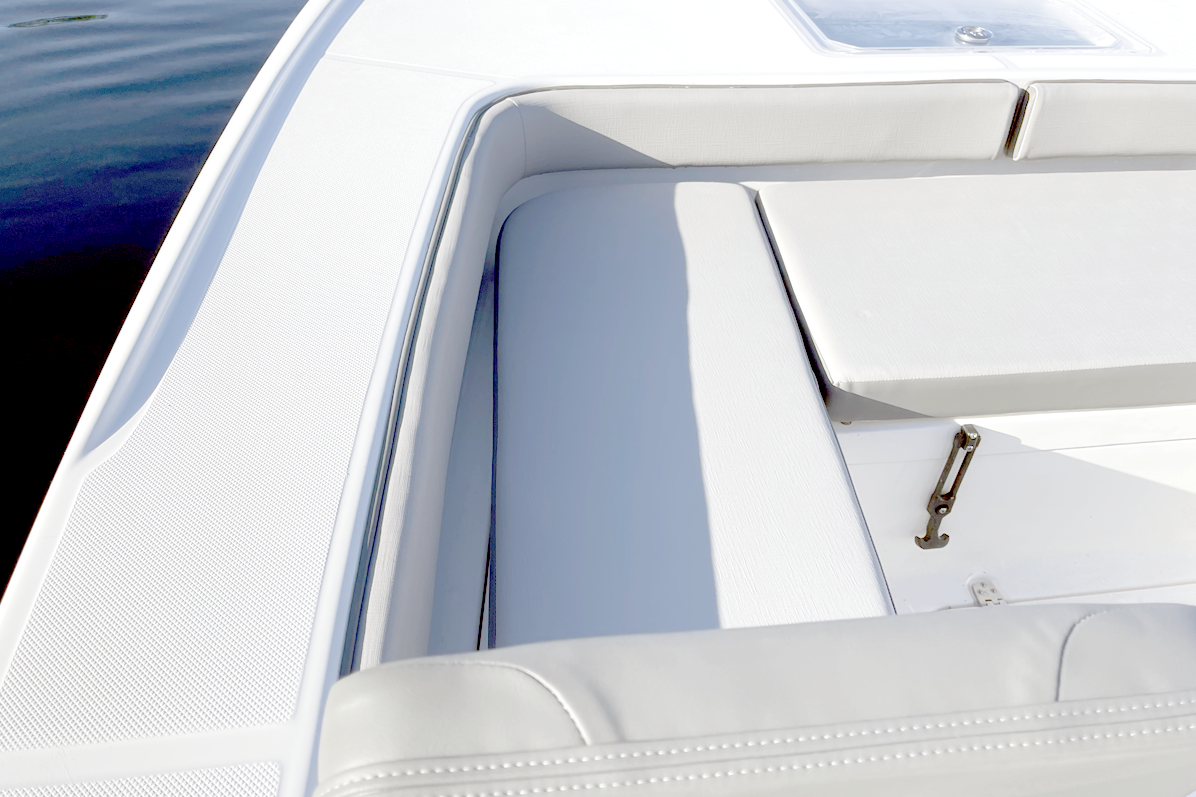

    • U-Lounge Coaming Cushions
    • U-Lounge Removable Cushions Set
    • Non-Skid Decks
    • Anchor Locker
    • Stainless Rub Rail
    • Flush Mount Cleats
    • Stainless Cup & Rod Holders
    • Rod & Cup Holder Drains
    • Finished Lids Both Sides

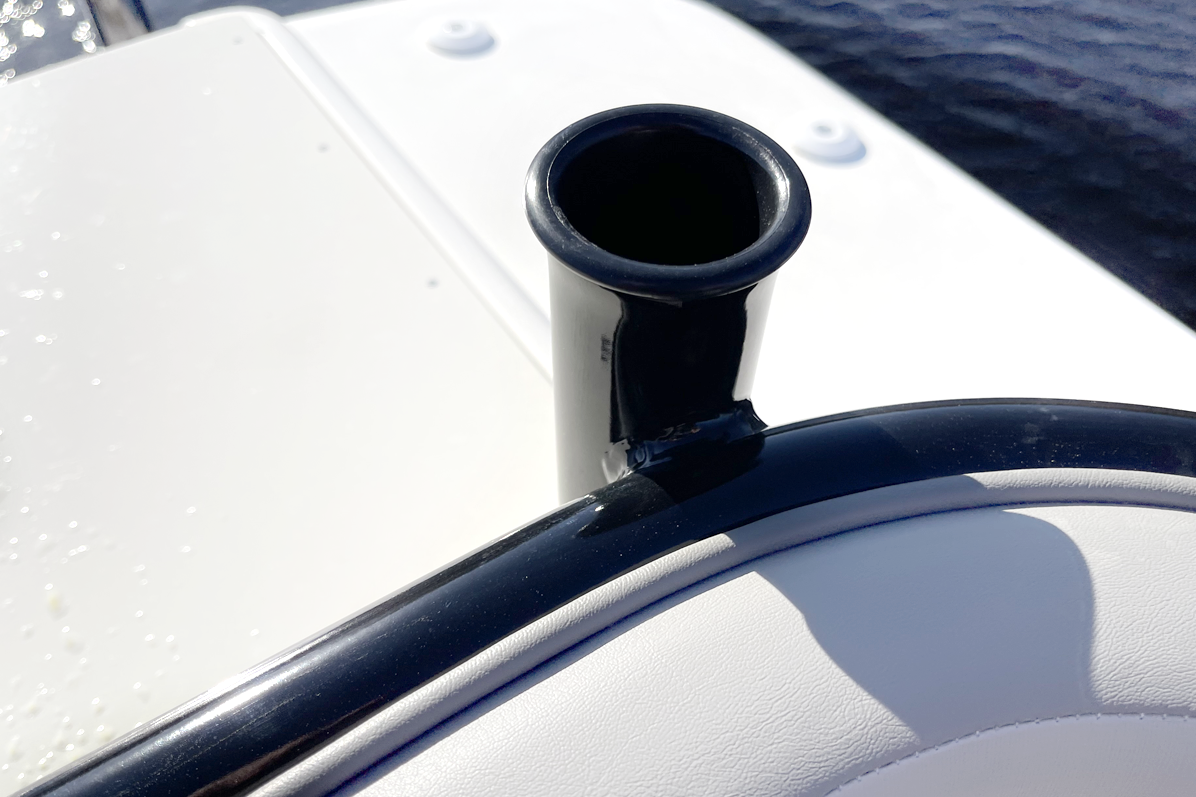

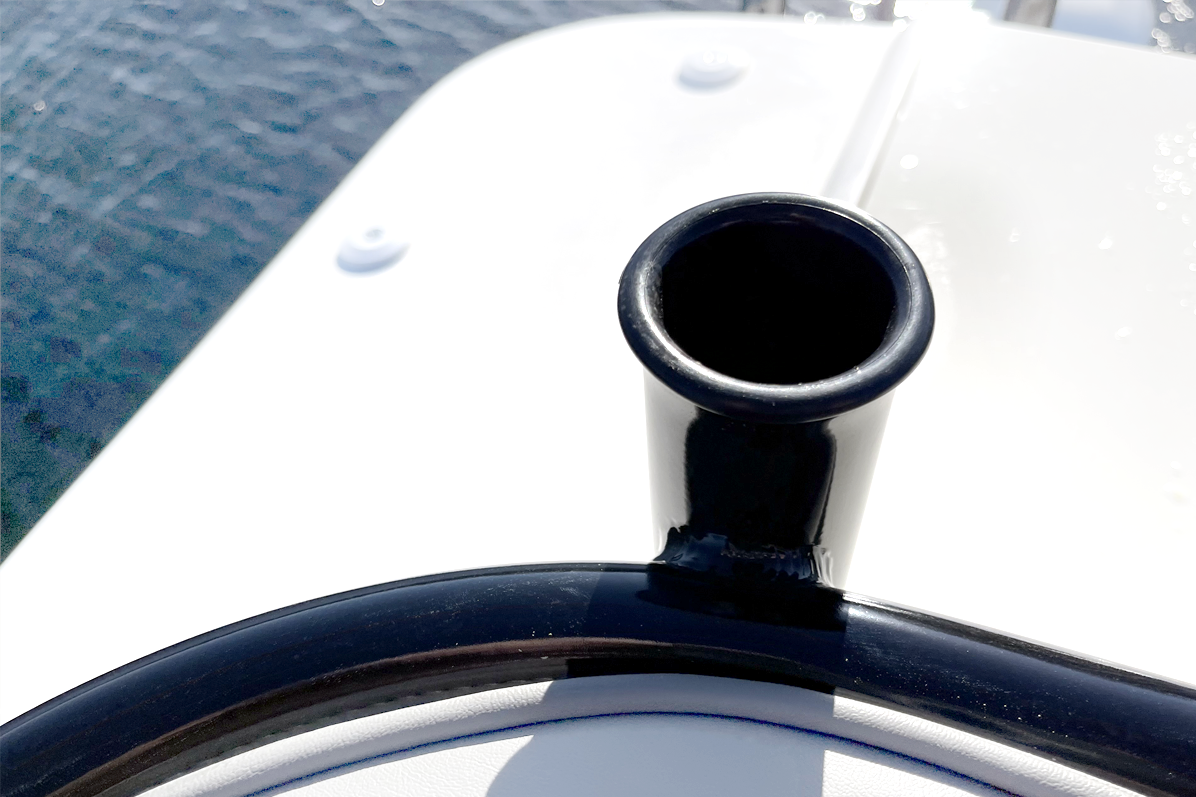

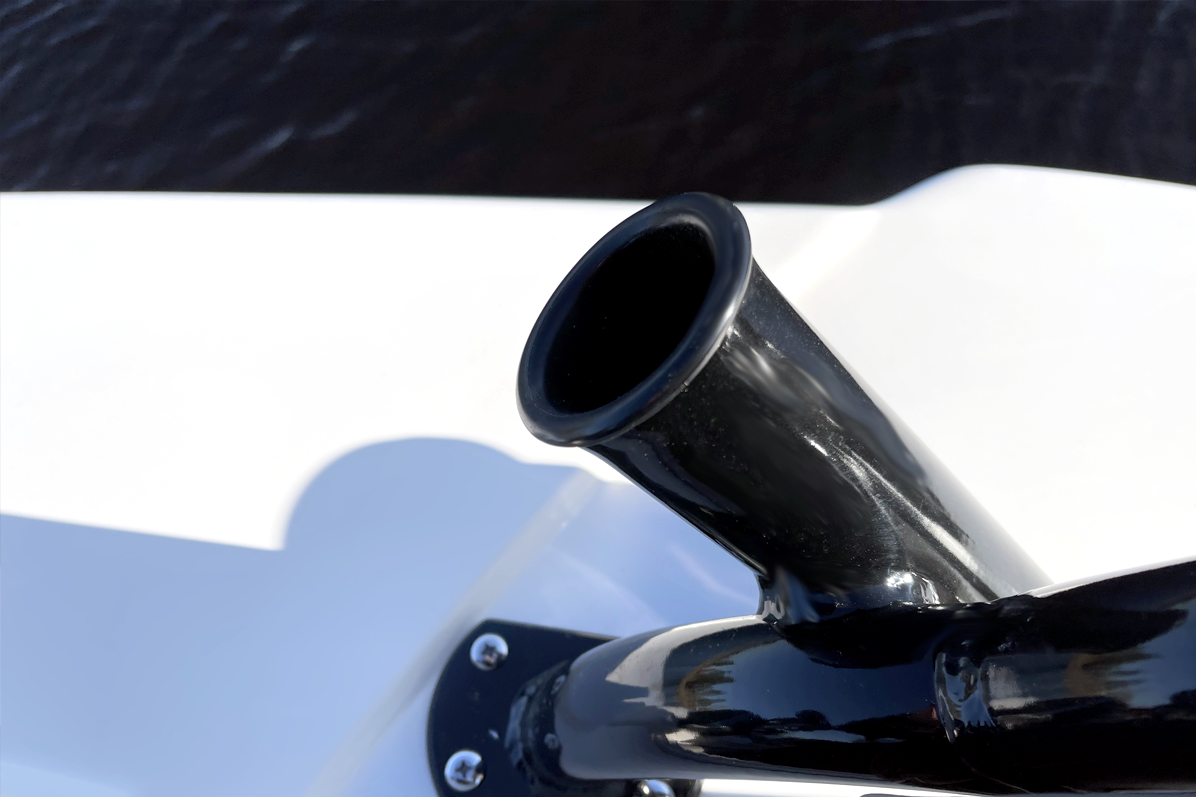

    • Gunwale Rod Holders
    • Under Gunwale Rod Holders & Cover Boards

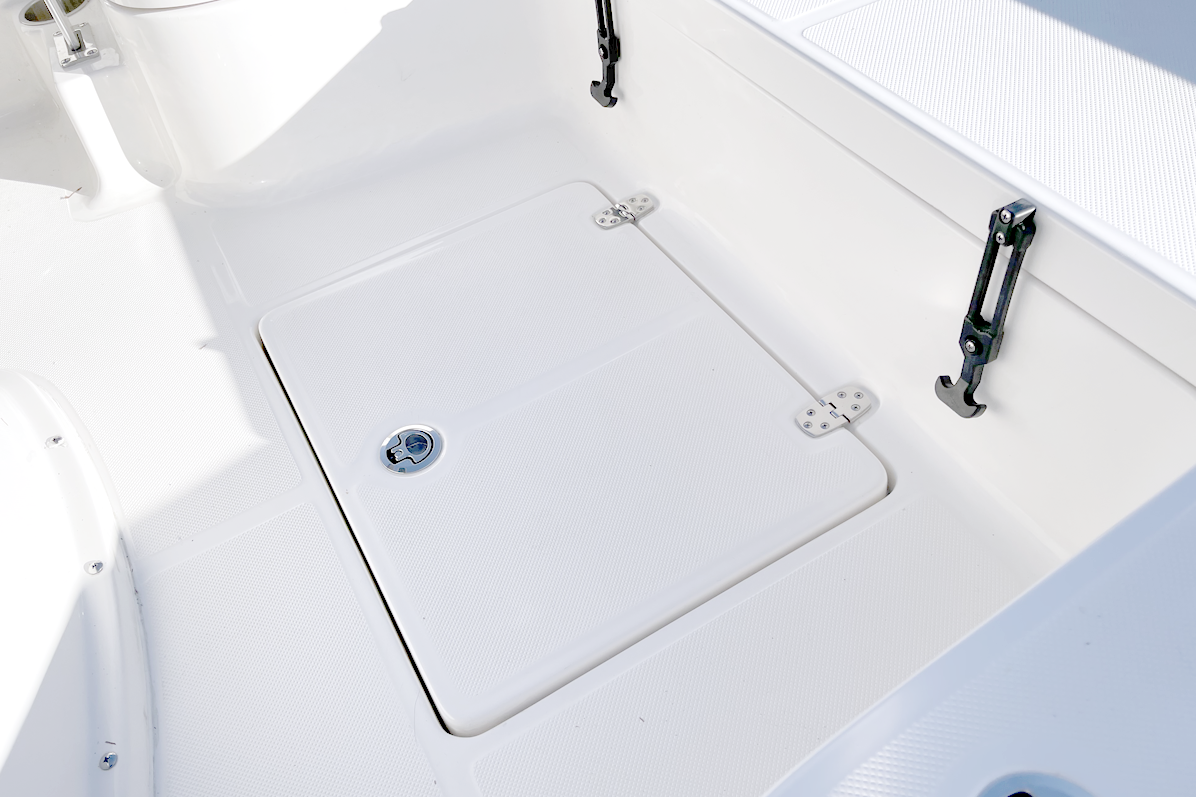

    • Cast Net Well w/ Gulper Pump

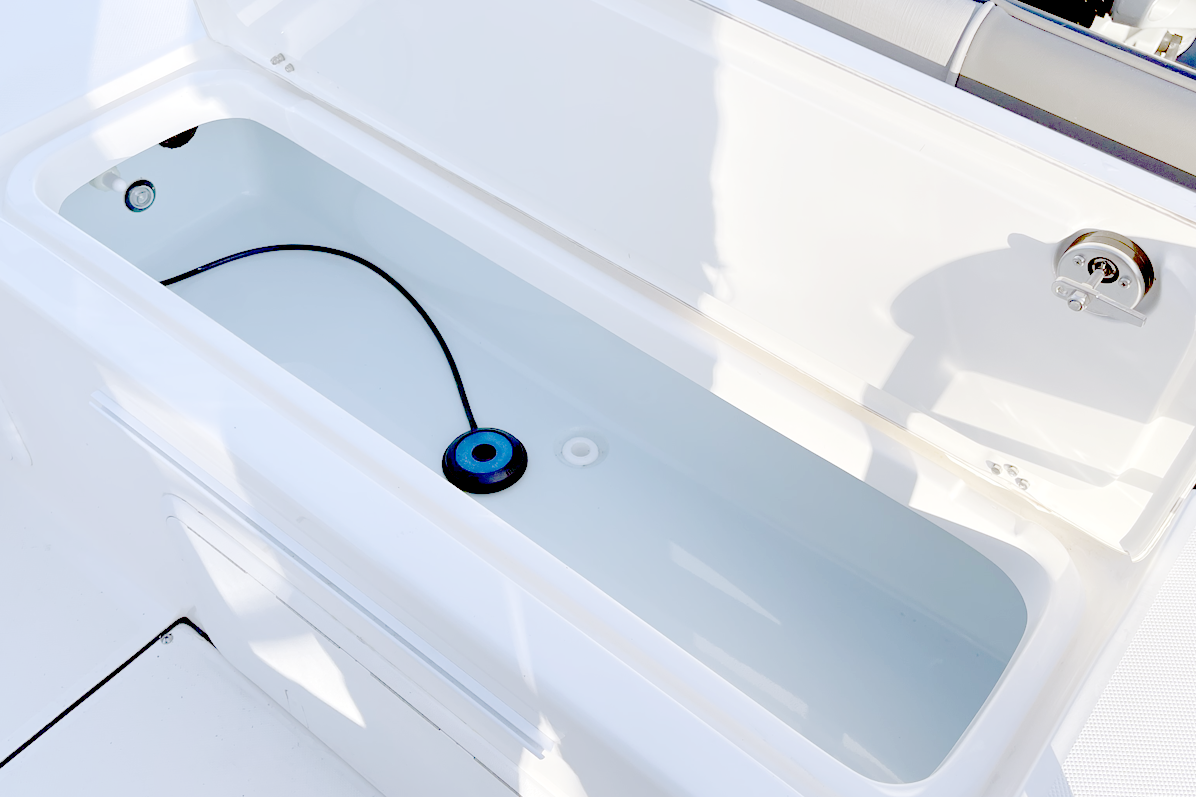

    • Forward Release Well
    • Gunwale Rod Holders
    • Areated Under Front Seat Bait Well
    • Lockable Console Door
    • Removable Console Windshield
    • Folding Stainless Console Hand Rail

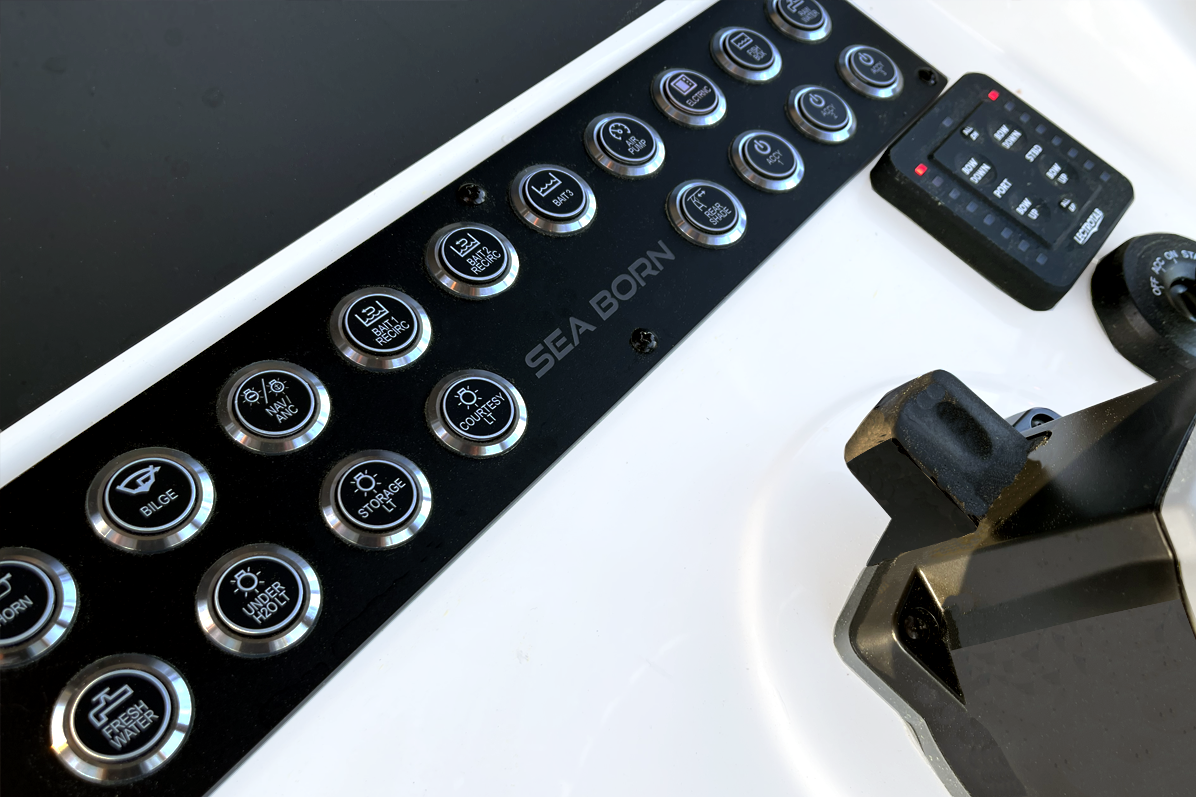

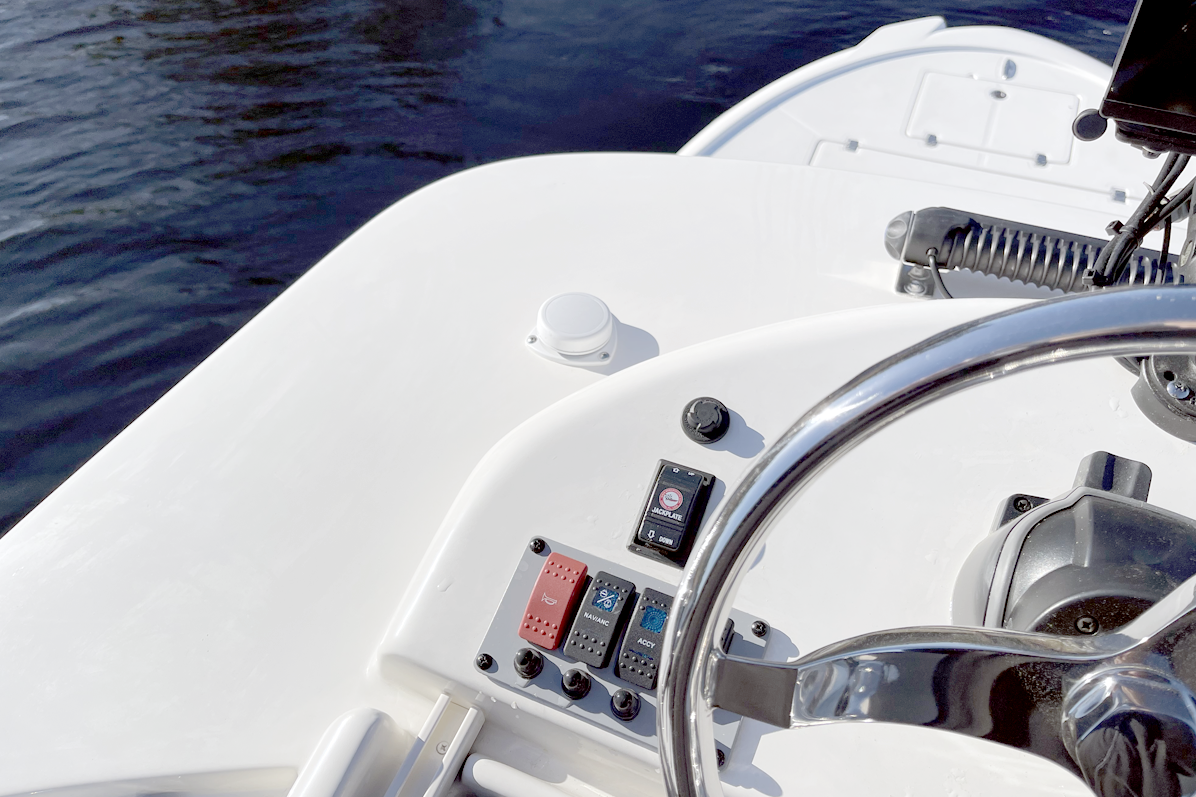

    • LED Rocker Switches
    • Dual Trumpet Horn
    • Hydraulic Steering
    • Tilt Steering

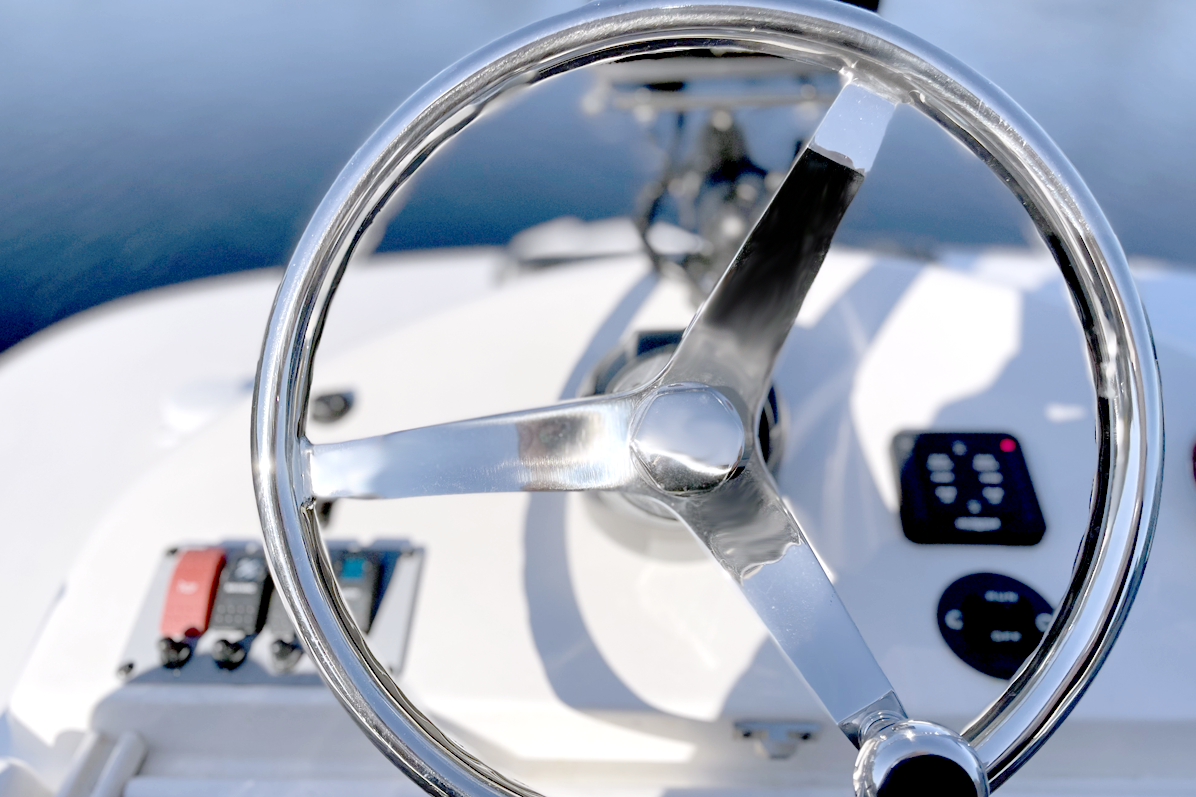

    • Stainless Steel Steering Wheel w/ Knob

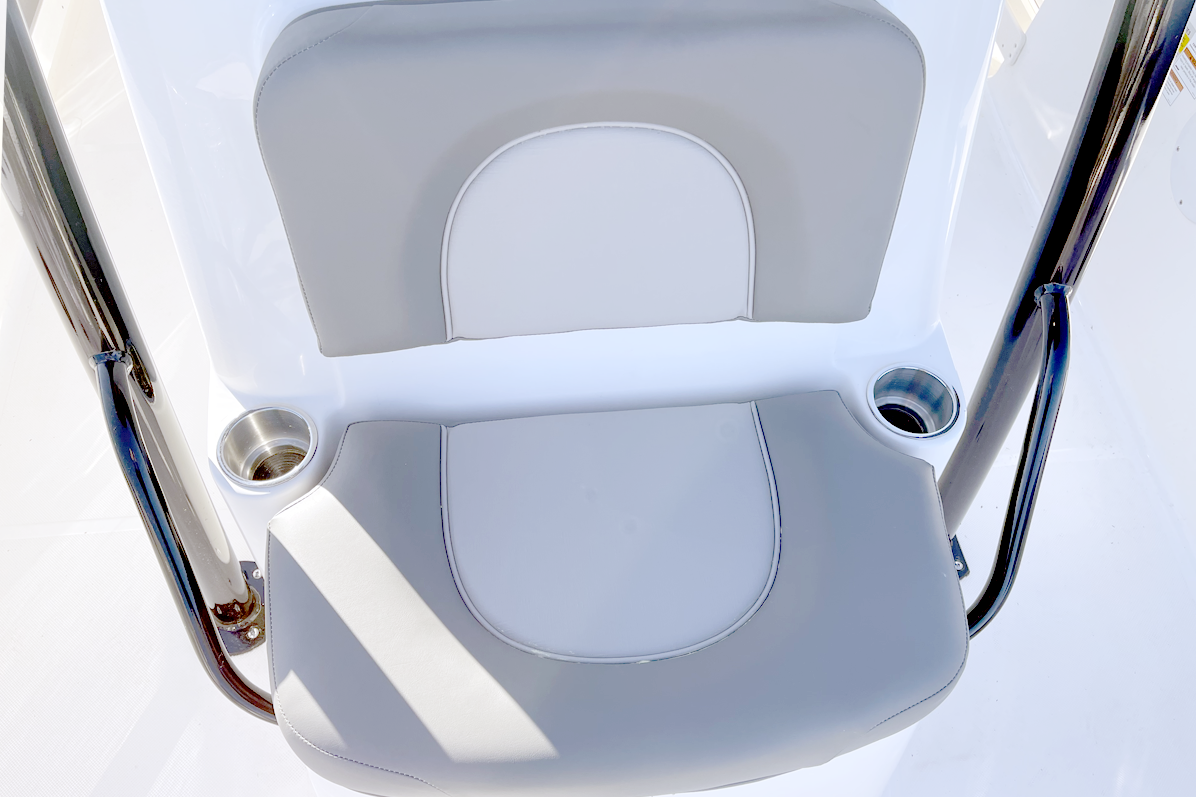

    • Console Front Seat w/ Cushions

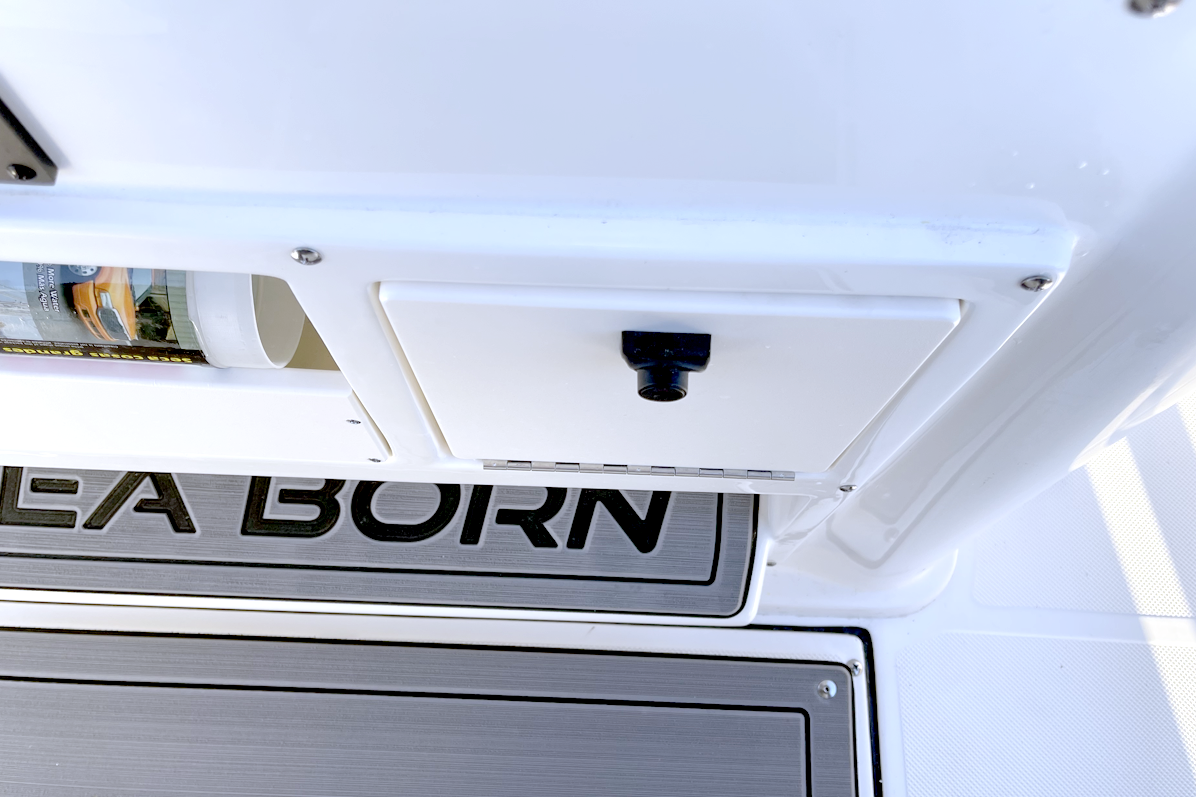

    • Console Glove Box
    • Digital Engine Gauge(s)

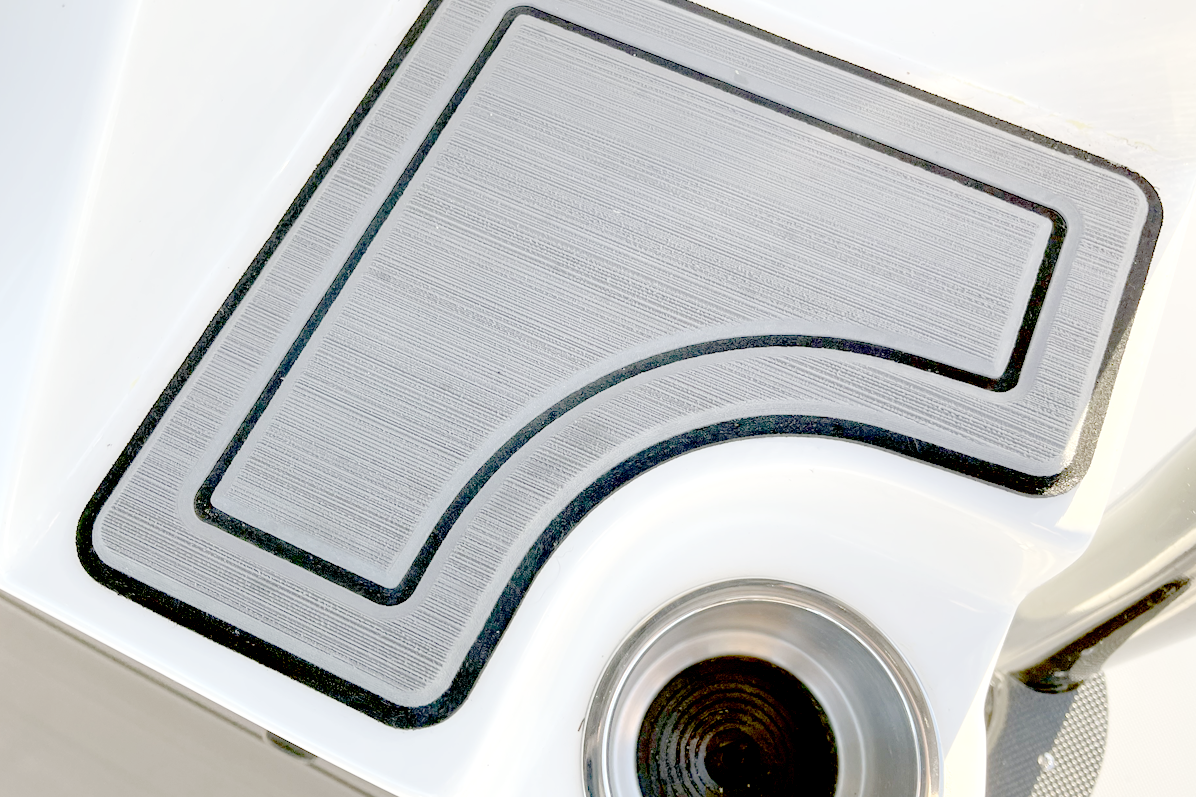

    • Console Footrest Pad
    • LED Rocker Switches

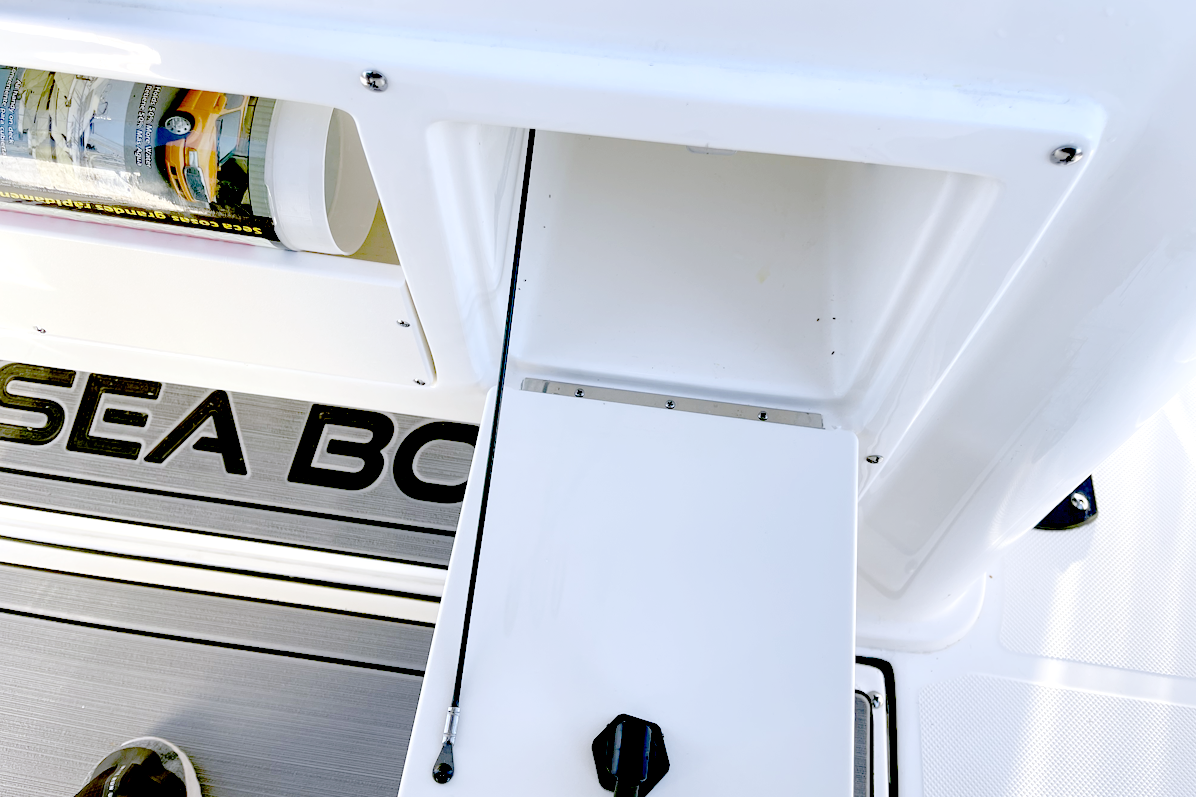

    • Upper Console Glove Box
    • Console Front Access
    • Console Rod Holders

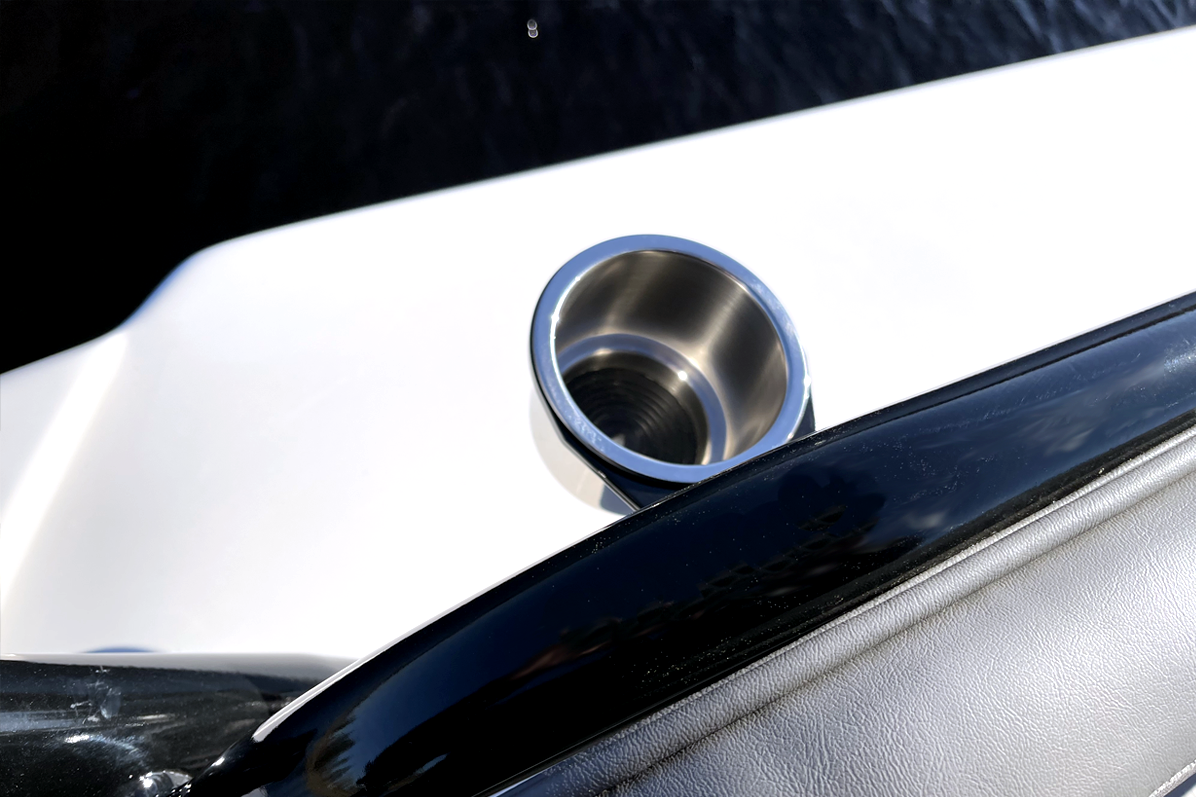

    • Console Stainless Cup Holders w/ Drains
    • Simrad evo3 NSS9
    • NMEA Network
    • SS60 Thru-Hull Transducer

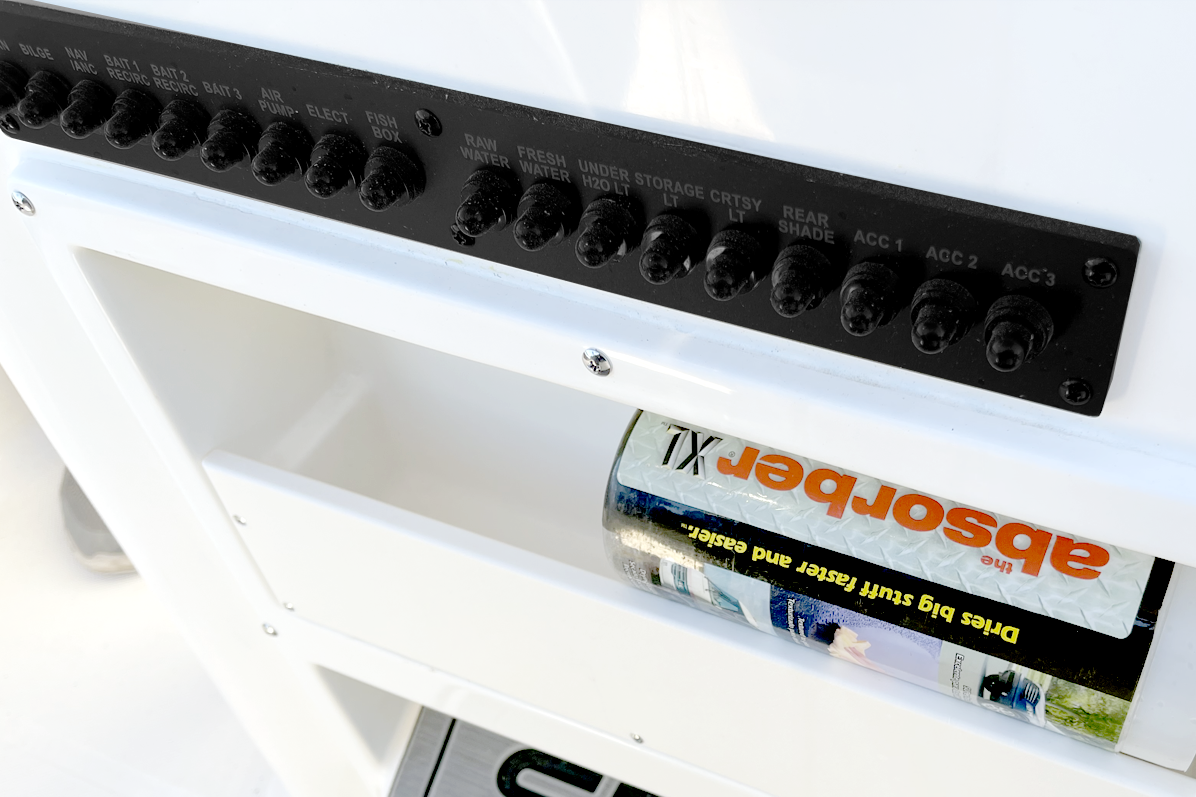

    • Push-Button Circuit Breakers
    • 12-Volt Power Point
    • Dual Battery Switch
    • Trim Tabs – LED Switch
    • Marine Speakers
    • Bluetooth-Enabled Marine Stereo
    • USB / MP3 Connection Port

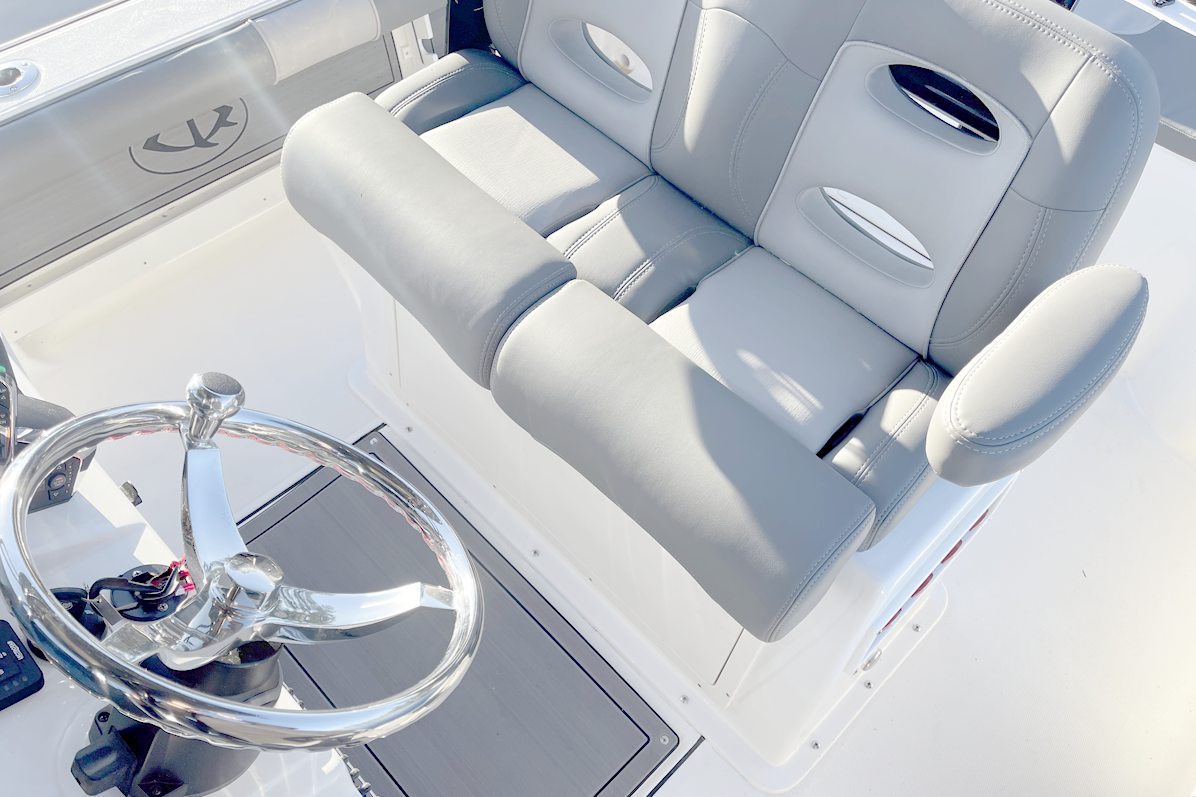

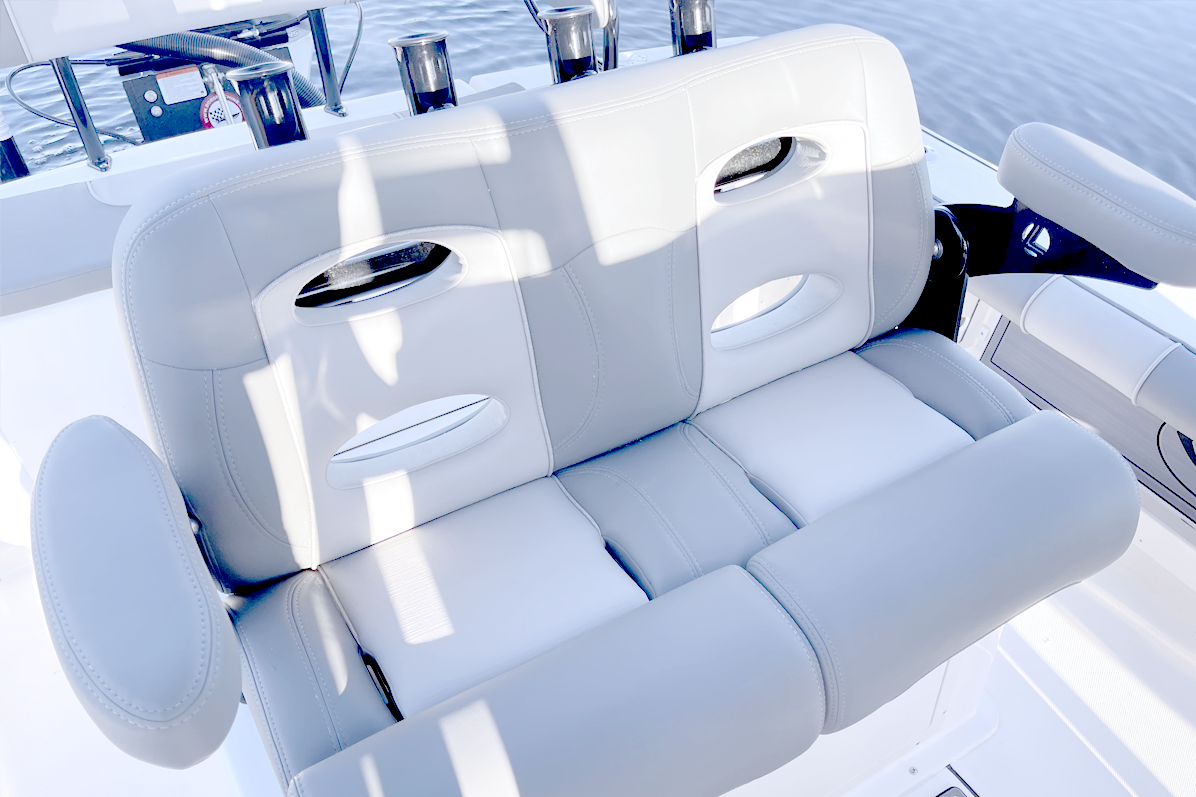

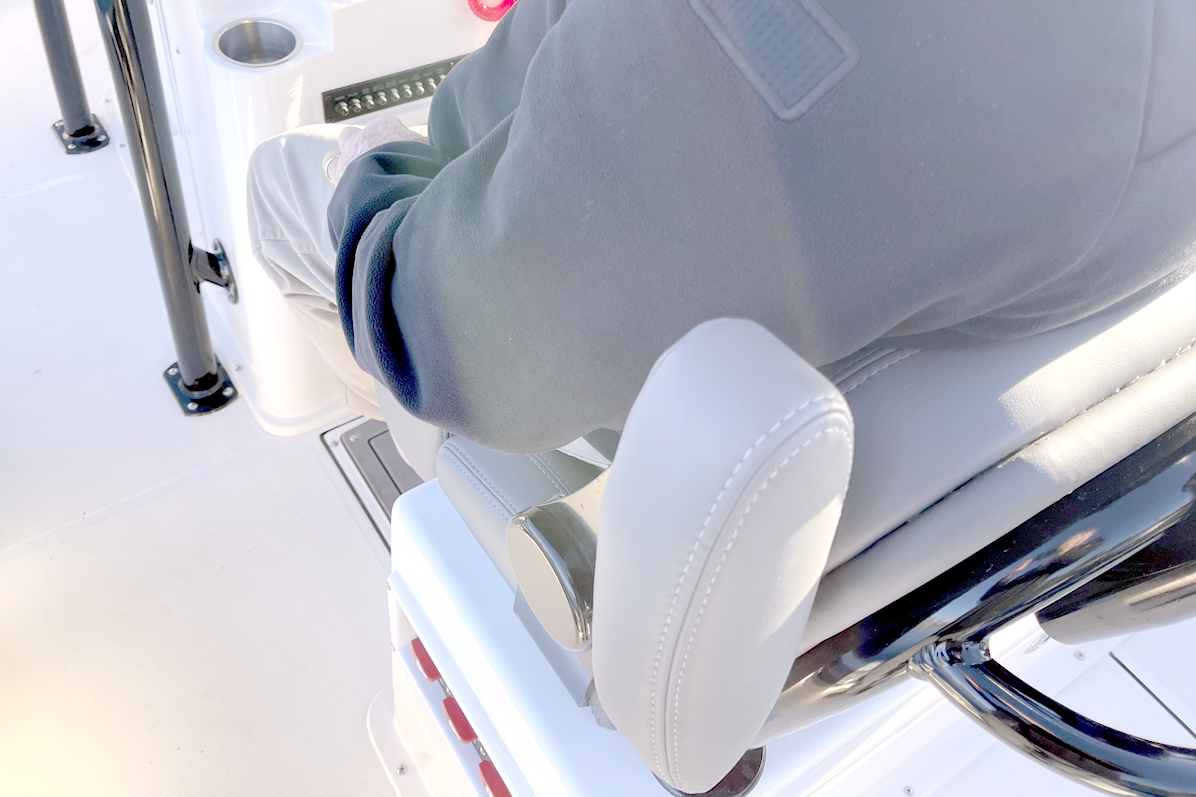

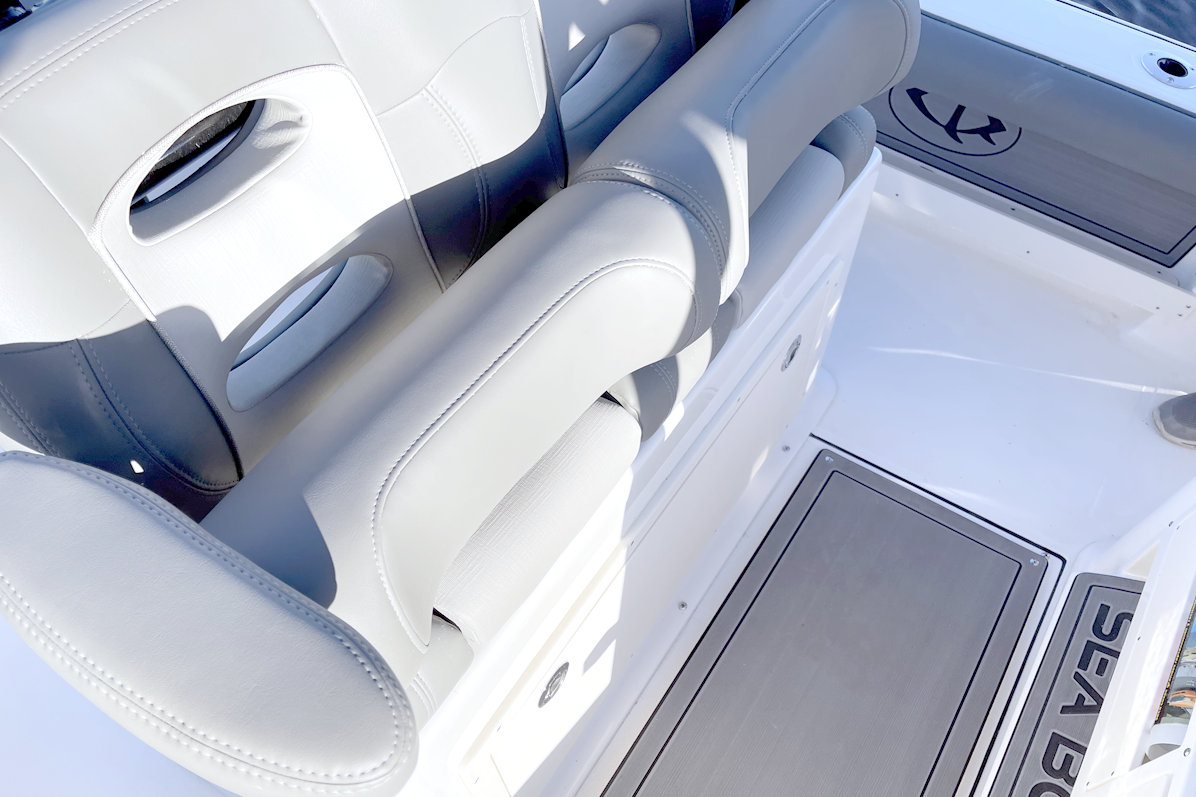

    • Two-Position Leaning Post & Seat
    • Fiberglass Leaning Post & Bait Station

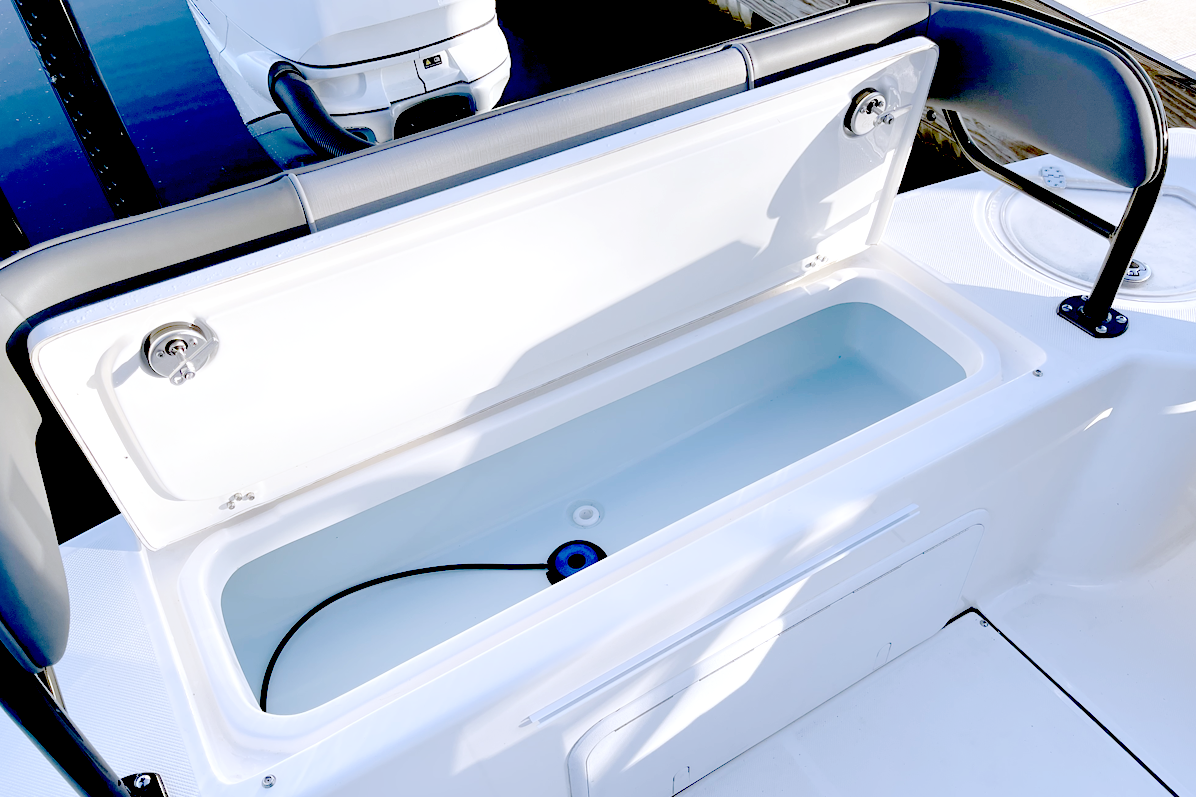

    • Leaning Post Bait Well

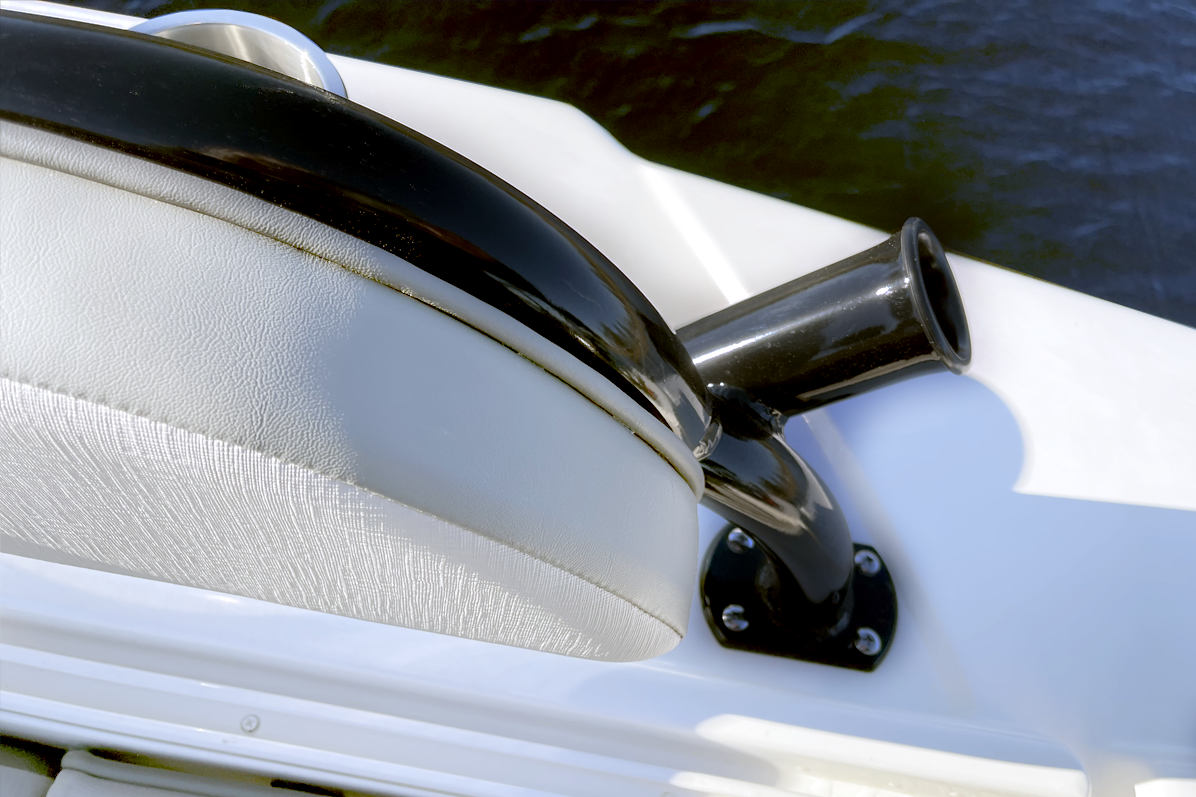

    • Leaning Post Rod Holders on Backrest
    • Tackle Bins
    • LED-Lighted Bait Well
    • LED Courtesy Lights
    • Integrated LED Lights in Bow Rub Rail
    • Storage LED Rod Box, Bilge, & Gunwale
    • High-Speed Live Well Pick Up
    • Self-Bailing Cockpit
    • Auto Bilge Pump
    • Seacocks
    • Stainless Thru-Hulls
    • Fuel Water Separator
    • Raw-Water Washdown

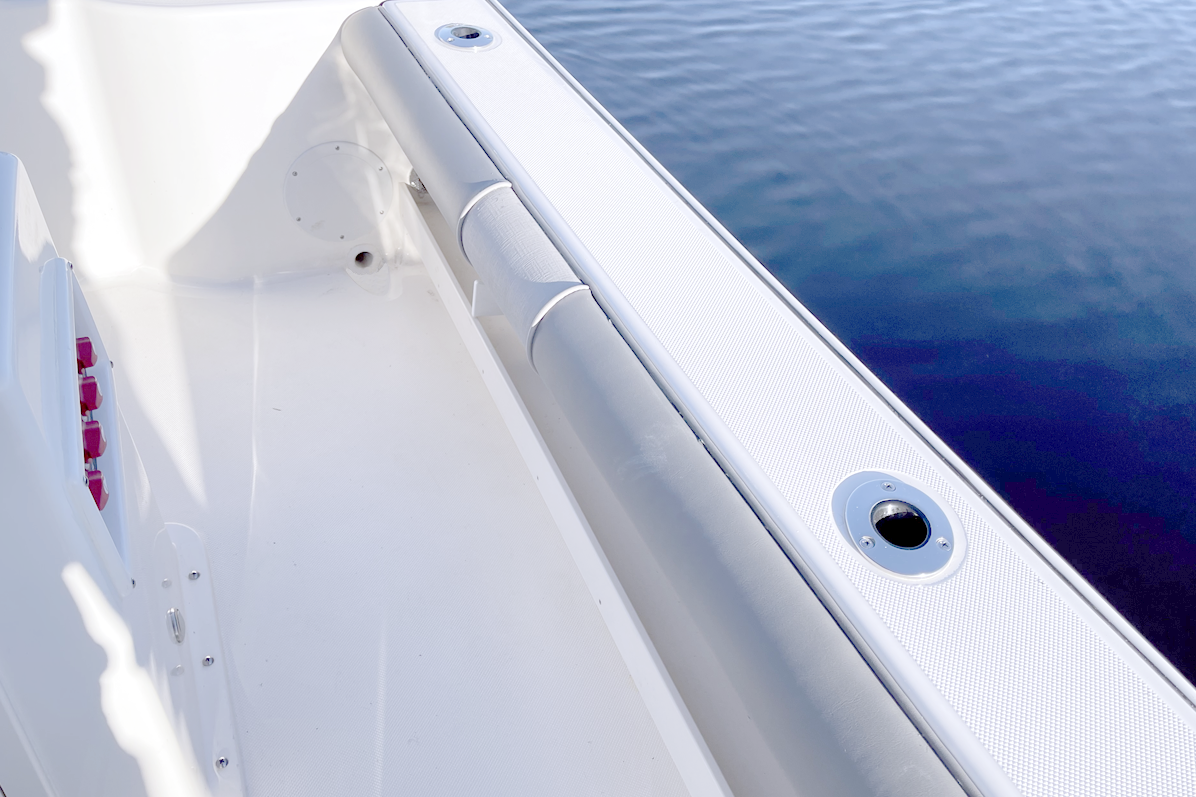

    • Aft Cockpit Coaming Cushions

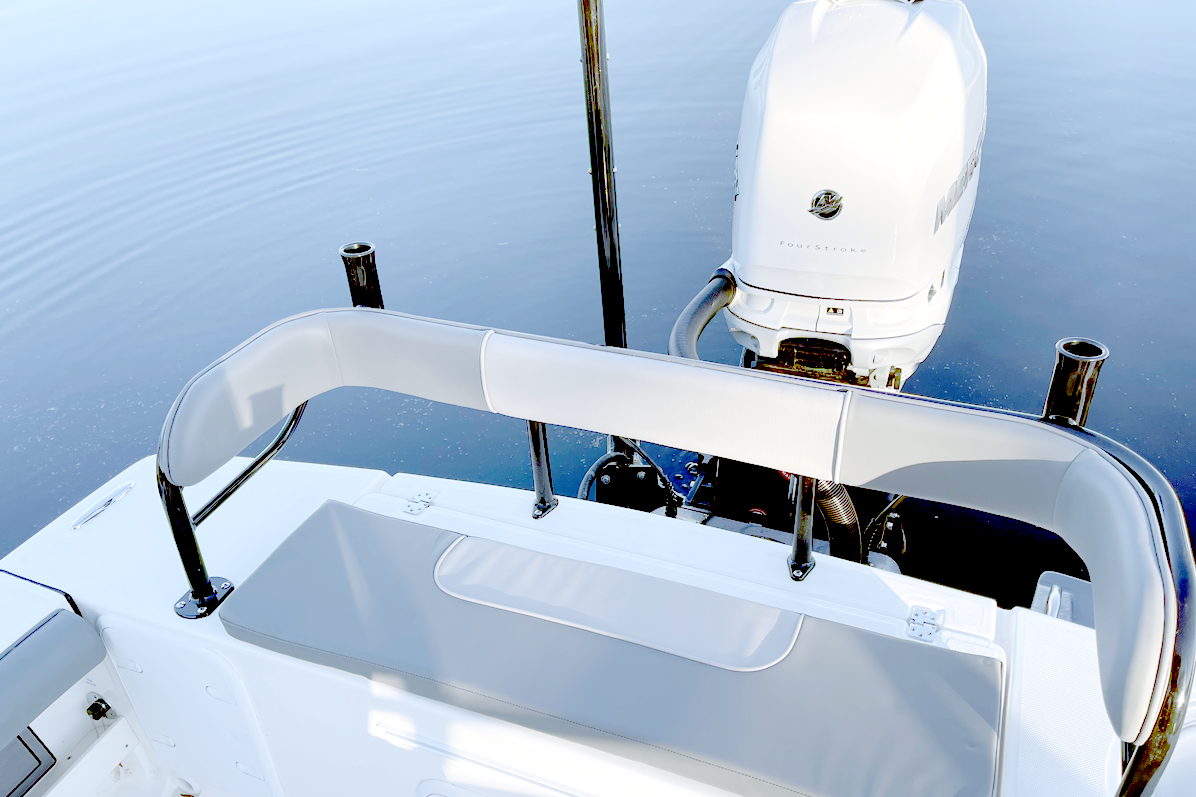

    • Folding Rear Bench Seat w/ Cushions
    • Transom Fishbox w/ Cutting Board
    • Molded Swim Platform w/ Step Ladder
    • 10” Extreme Jack Plate


    SE Package

    • Includes All Standard Features

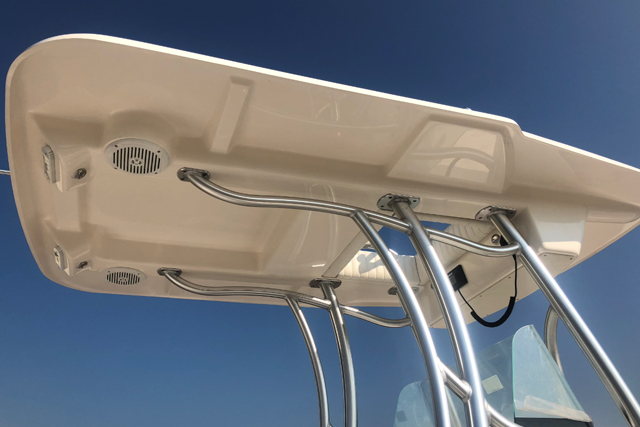

    • T-Top with E-Box
    • LED Spreader Lights
    • Map & Courtesy Lights
    • Bow Storage Bin
    • Underwater Lights
    • Freshwater Washdown
    • 2-Tone Hull Color


    LE Package

    • Includes All Standard

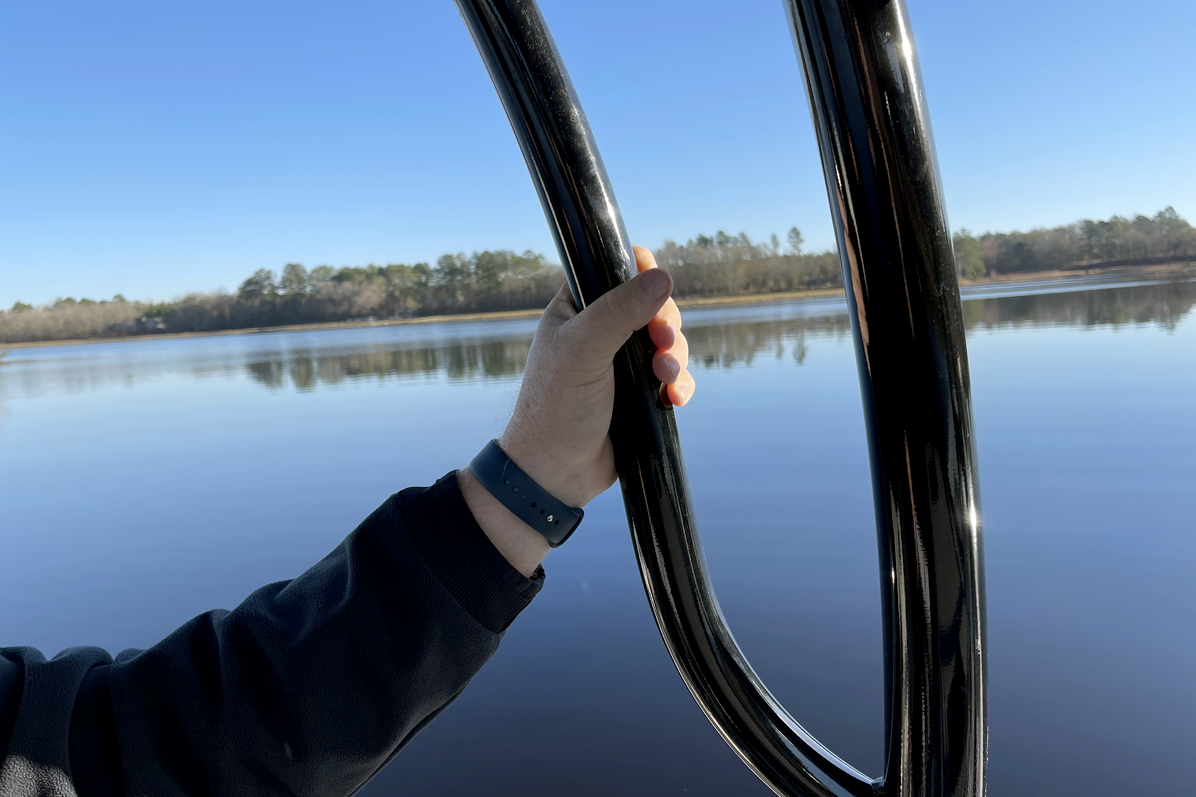

    • Hard Top with Wired Electronics Box
    • LED Spreader Lights
    • Map & Courtesy Lights
    • Bow Storage Bin
    • Underwater Lights
    • Freshwater Washdown
    • 2-Tone Hull Color
    • Color Matched Hard Top Underside


Content Value
Model FX25
Length (ft-in) 24-11
Beam (in) 105
Approx. Fuel Capacity (gal) 75
Max. Power (hp) 300
Recommended Power (hp) 250
Draft (in) 11
Cockpit Freeboard (in) 22
Floor Width (in) 86
Dead Rise (deg) 17
Max. Person 10
Max. Person Cap. (lbs) 1,442
Max Total Capacity (lbs) 2,382
Transom Height (in) 25
Model Dry Weight (lbs) 2,600
