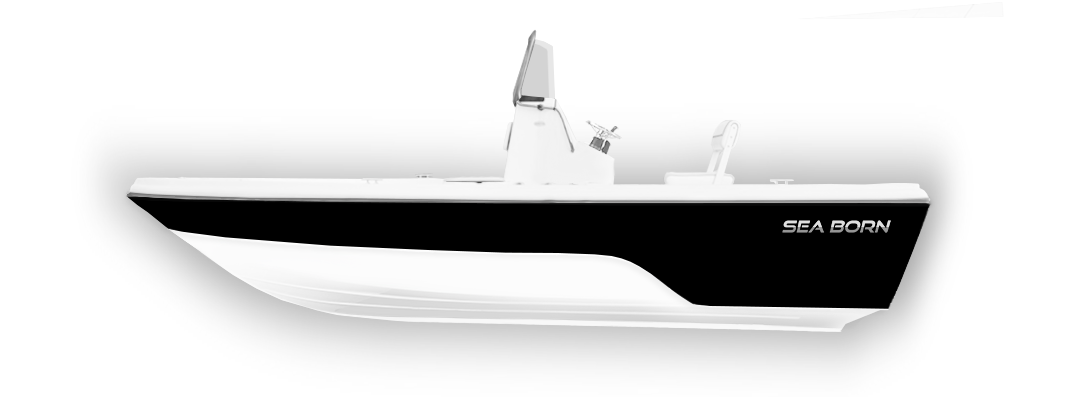

SV19-Bay Specifications

  • Excellence in Bay Boats

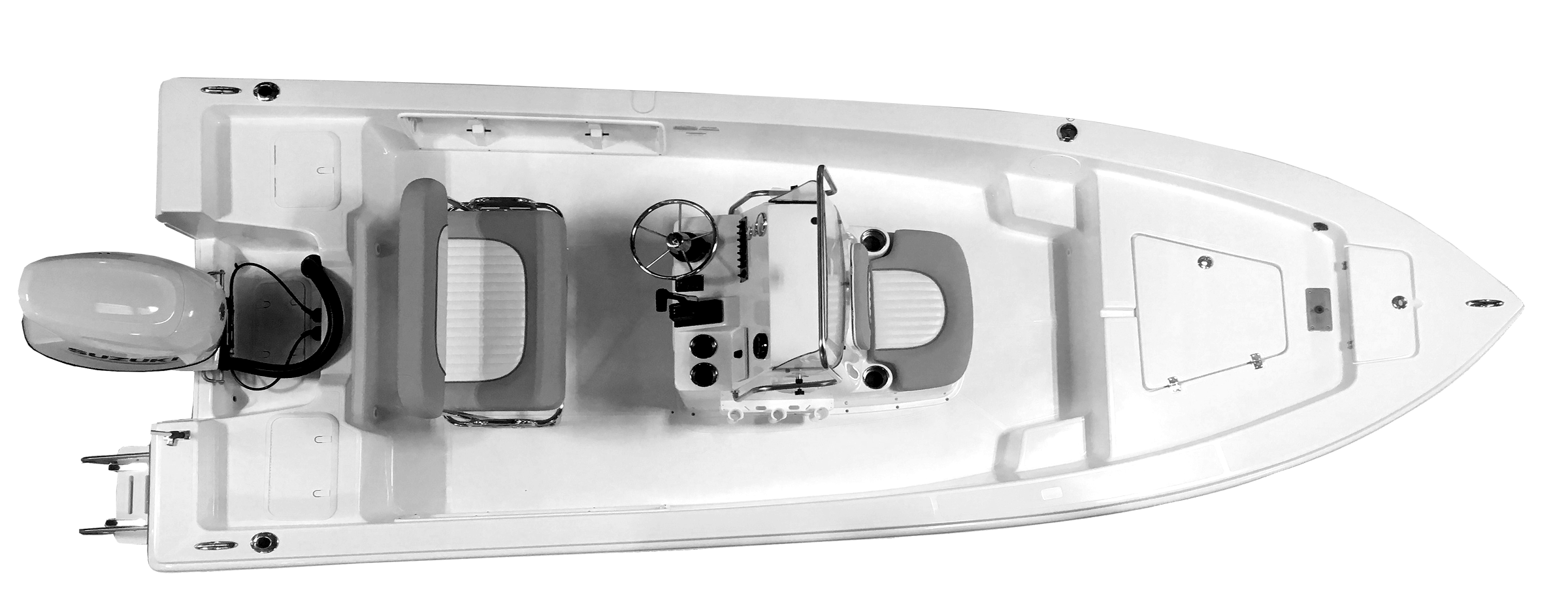

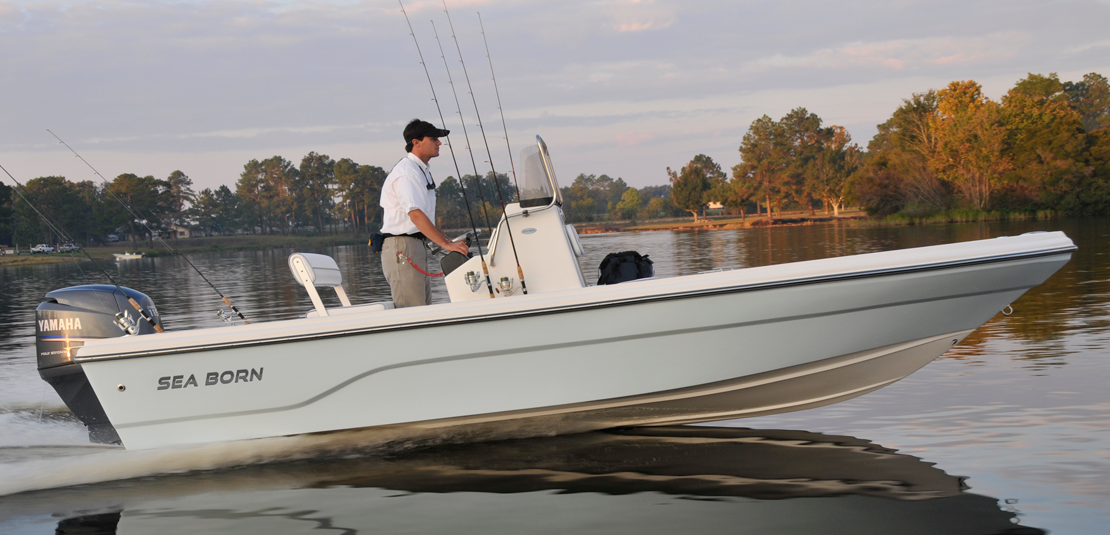

    The SV19 is packed with many of the must have bay boat features making it an excellent choice for both first time and seasoned buyers. With a large feel, the 19’s, 90” beam and 19” freeboard offers an open and usable floor plan and gunwale rod storage. Also included, the AKS (Air Keel Step) hull directly below the console reduces wet surfaces for a more fuel efficient hull.

    Standard Features

    • 10-Year-Limited Hull Warranty
    • No-Wood All Composite Construction
    • Advanced Fiberglass Stringer System
    • Trolling Motor Harness & Plug
    • Non-Skid Decks

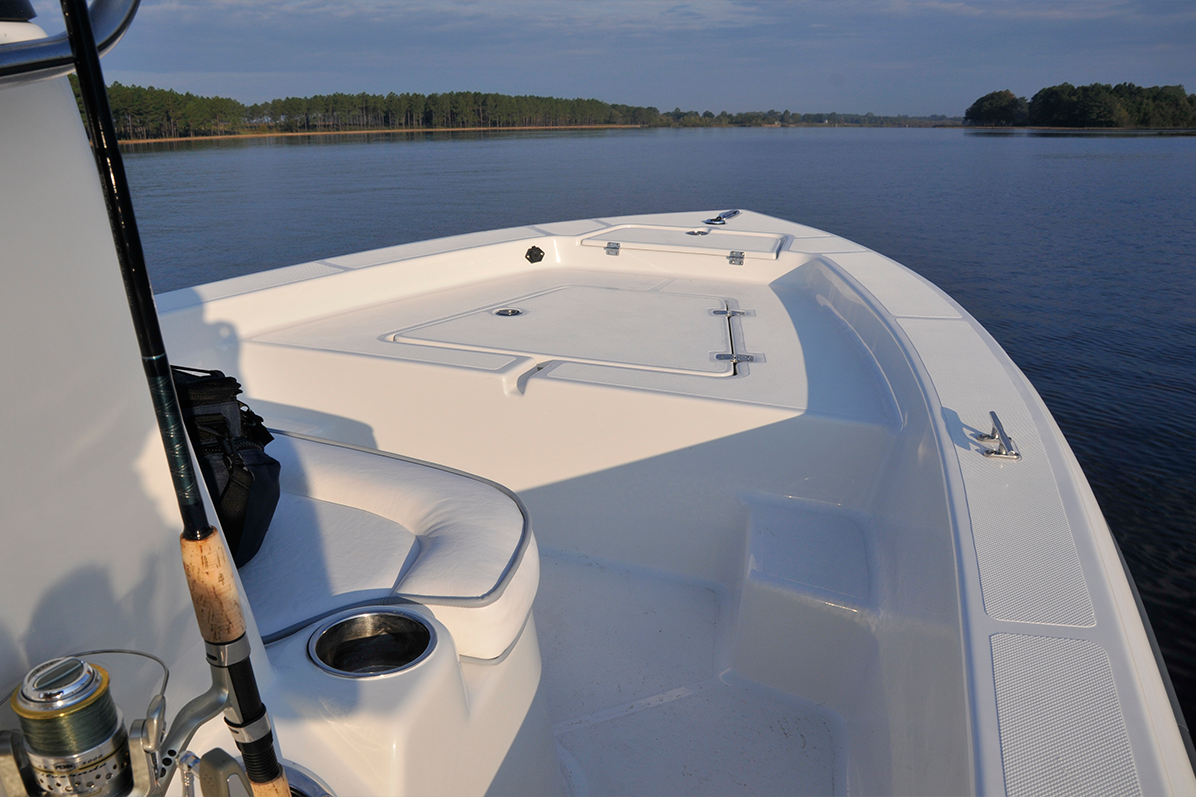

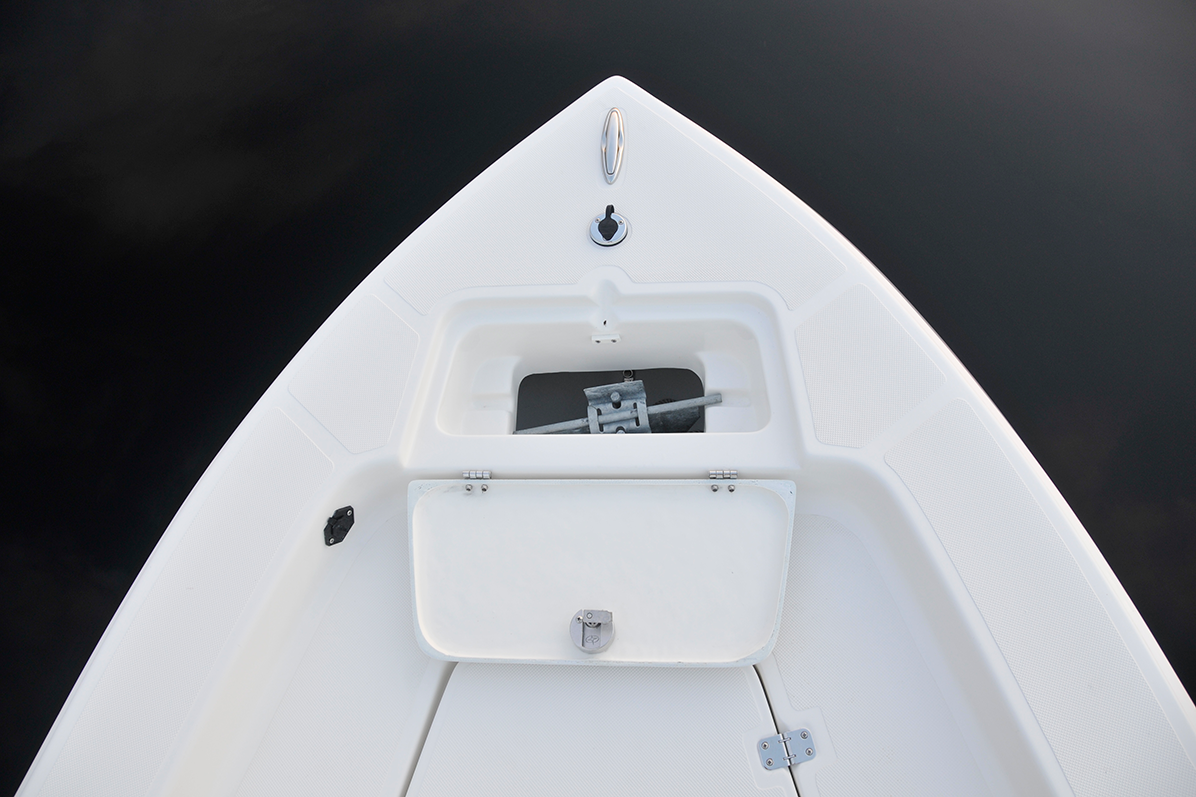

    • Anchor Locker
    • Stainless Rub Rail
    • Flush Mount Cleats
    • Stainless Cup & Rod Holders
    • Rod & Cup Holder Drains
    • Finished Lids Both Sides
    • Gunwale Rod Holders
    • Gunwale Rod Bins

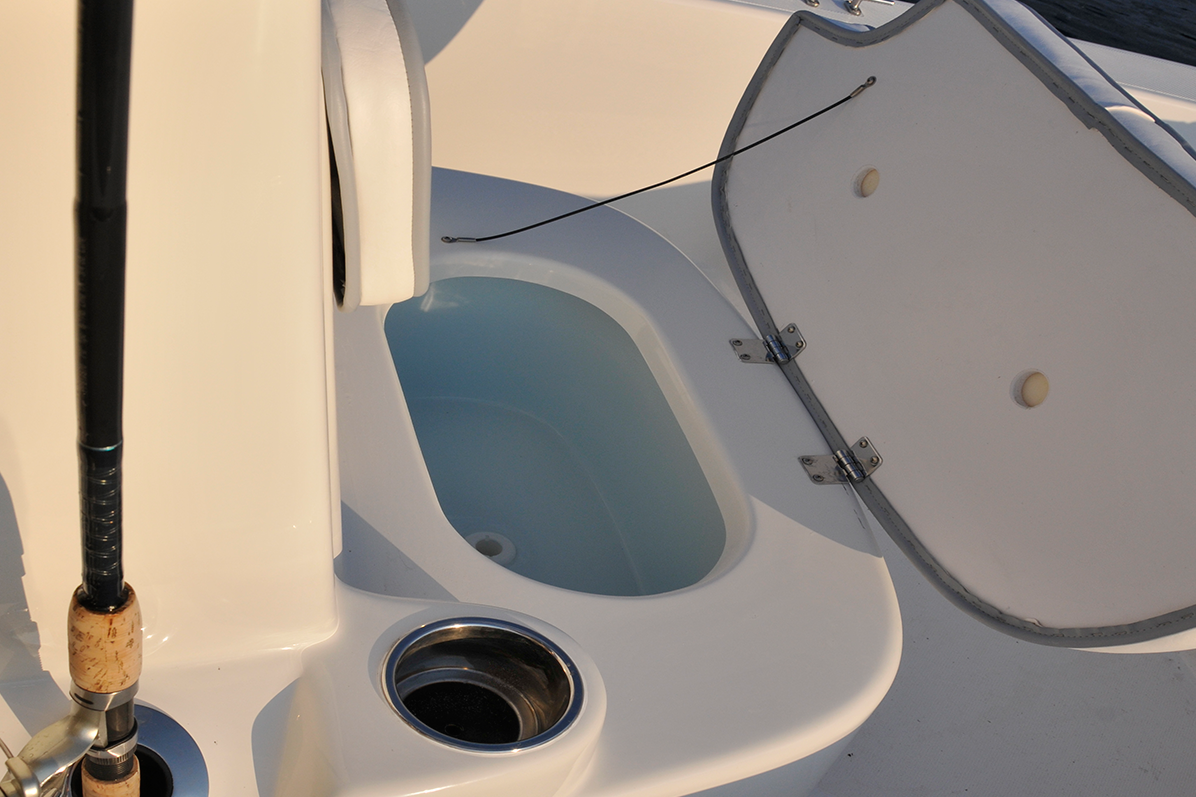

    • Aerated Console Well

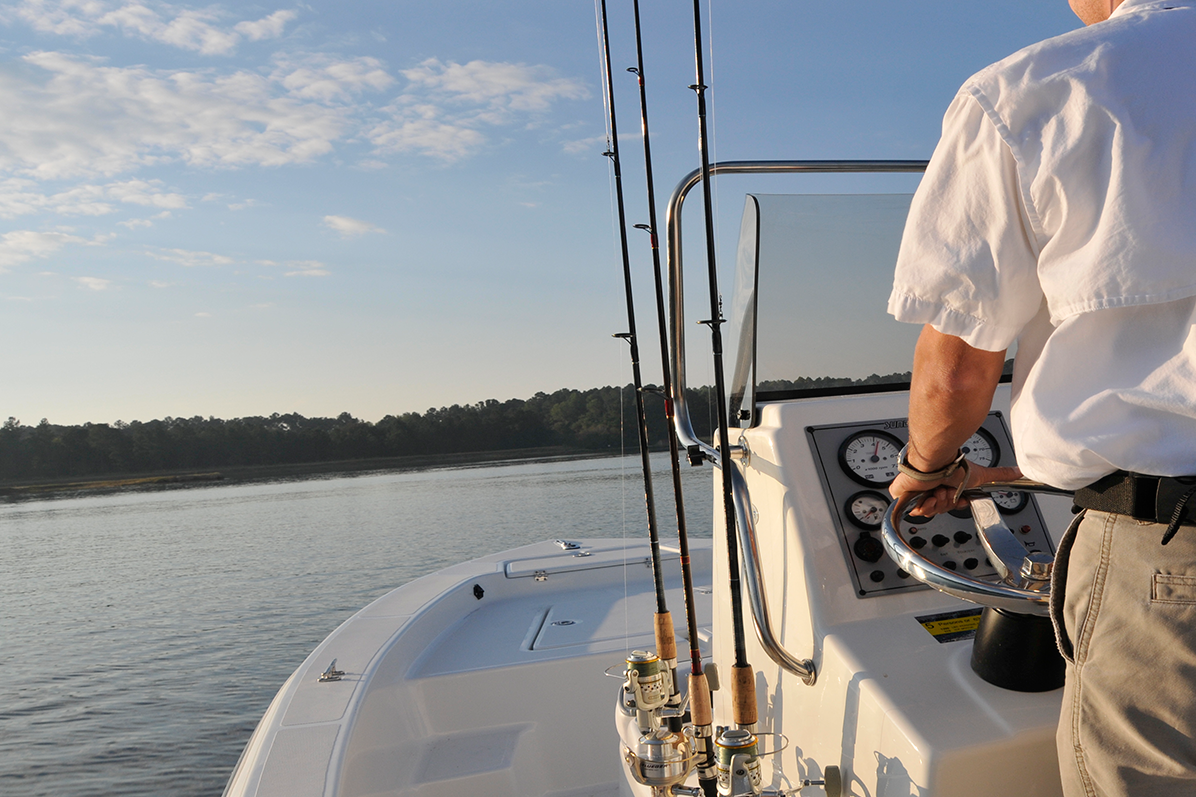

    • Removable Console Windshield
    • Folding Stainless Console Hand Rail
    • LED Rocker Switches
    • Horn w/ Stainless Grill
    • No-Feedback Steering
    • Tilt Steering
    • Stainless Steering Wheel
    • Console Front Seat w/ Cushions
    • Console Glove Box
    • Analog Engine Gauge(s)
    • Console Front Access Opening
    • Vented Console Door

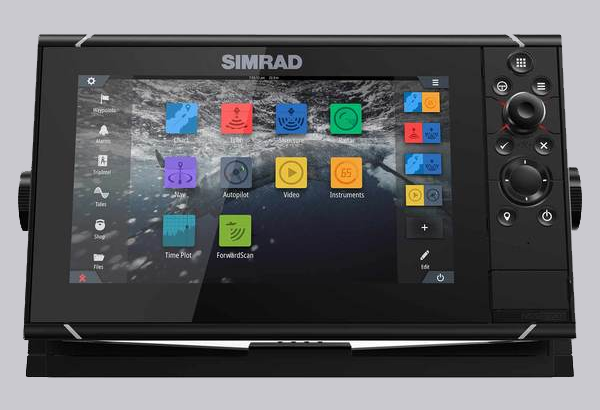

    • Simrad GO7
    • Total Scan Skimmer Transducer
    • Push-Button Circuit Breakers
    • 12-Volt Power Point
    • Basic Pilot Seat
    • Adjustable Backrest
    • Underseat Cooler w/ Cushion
    • LED-Lighted Bait Well
    • LED Courtesy Lights
    • Integrated LED Lights in Bow Rub Rail
    • High-Speed Live Well Pick Up
    • Auto Bilge Pump
    • Seacocks
    • Stainless Thru-Hulls
    • Fuel Water Separator

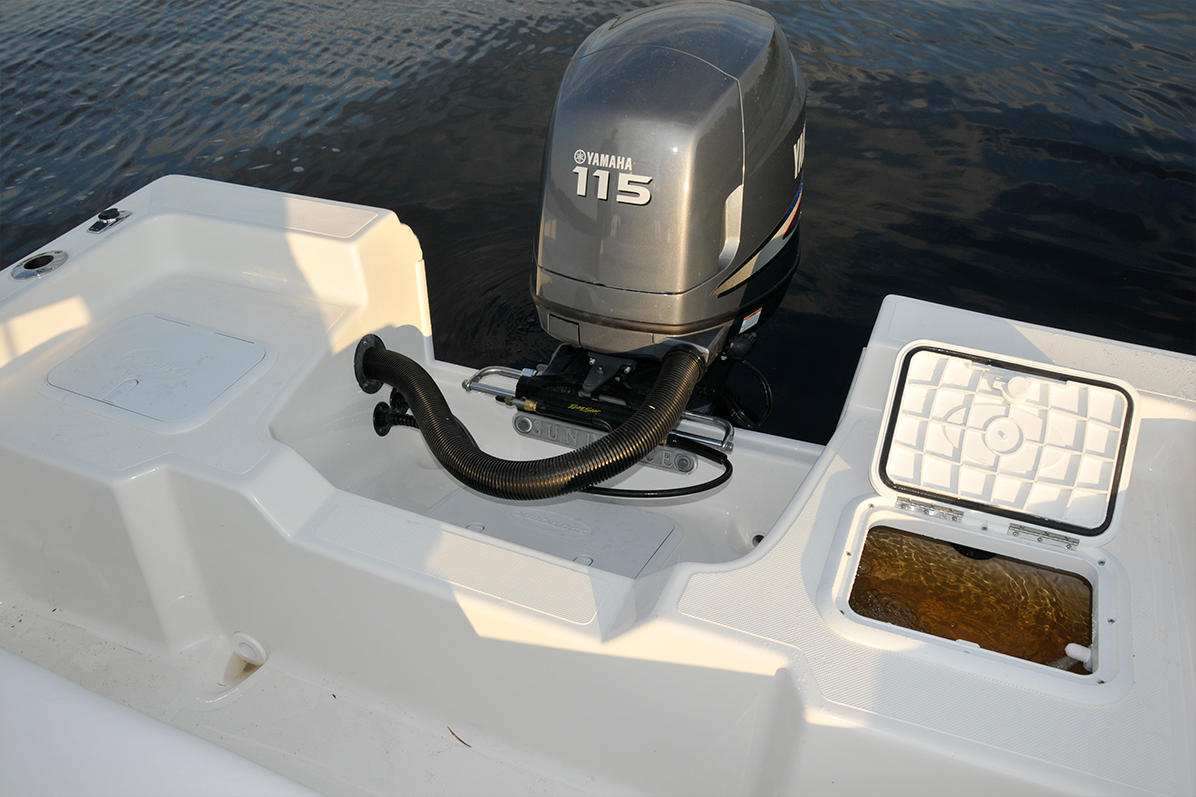

    • Rear Bait Well


Content Value
Model SV119
Length (ft-in) 18-6
Beam (in) 90
Approx. Fuel Capacity (gal) 40

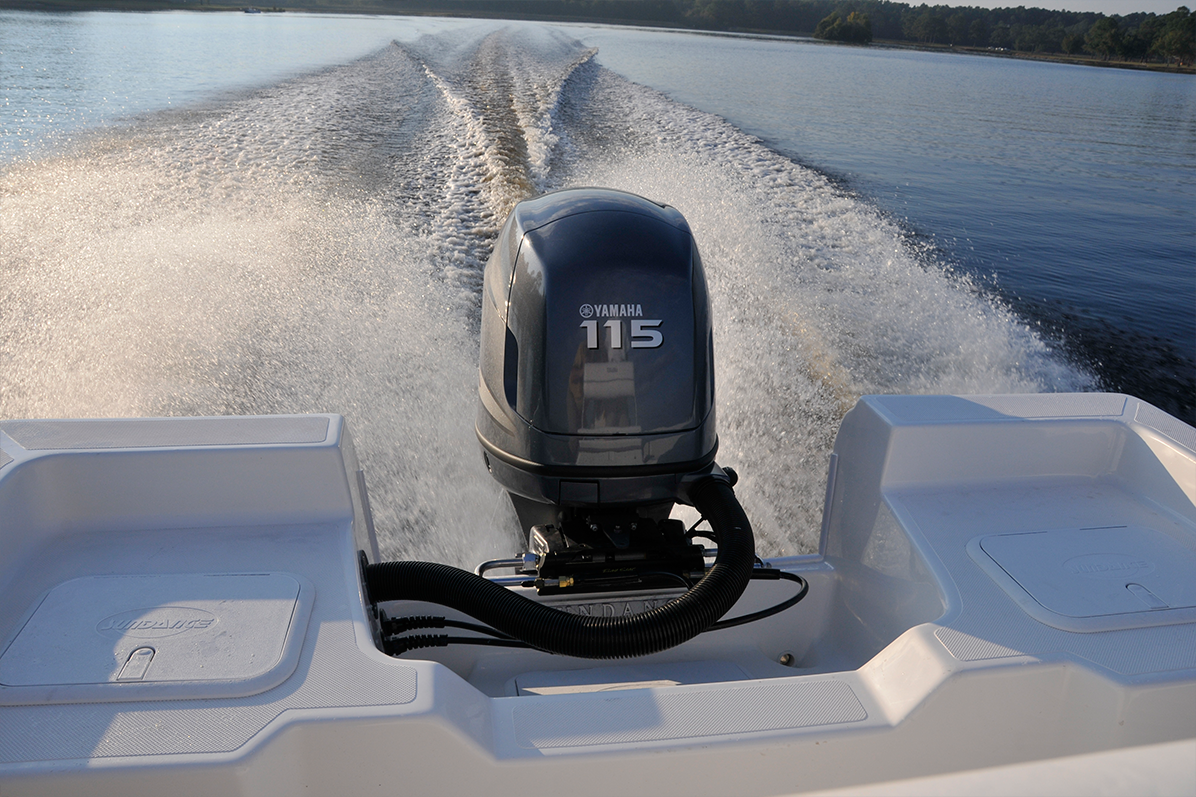

Max. Power (hp) 115
Recommended Power (hp) 115
Draft (in) 11
Cockpit Freeboard (in) 19
Floor Width (in) 70
Dead Rise (deg) 17
Max. Person 5
Max. Person Cap. (lbs) 737
Max Total Capacity (lbs) 1,464
Transom Height (in) 25
Model Dry Weight (lbs) 1,450
